7-1393640-8
ActiveTE Connectivity AMP Connectors

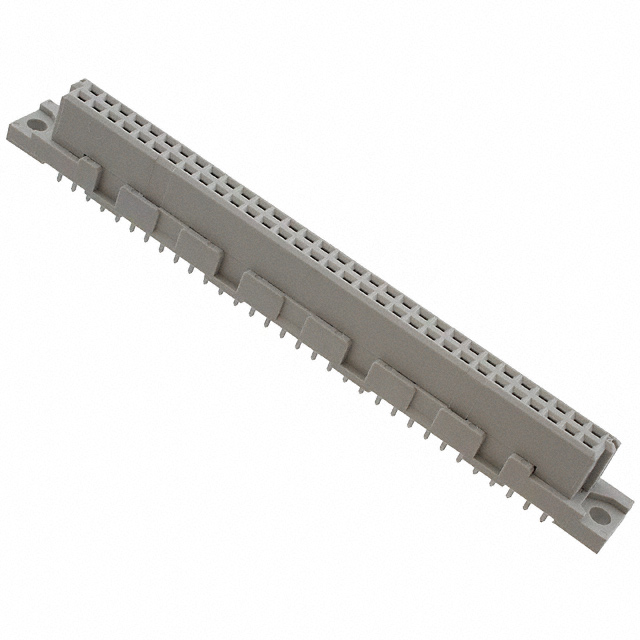

CONN DIN RCPT 64POS PCB GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1393640-8
ActiveTE Connectivity AMP Connectors
CONN DIN RCPT 64POS PCB GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 7-1393640-8 | 1393640 Series |
|---|---|---|
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold, Gold-Palladium | Gold, Gold-Palladium |
| Level, Class | - | 1, 3 |
| Material - Insulation | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Right Angle, Through Hole |
| Number of Positions | 64 | 4 - 96 |
| Number of Positions Loaded | All | All |
| Number of Positions Loaded | - | 42 - 64 |
| Number of Rows | 2 | 2 - 3 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
| Style | B | M, C/2, C, B |
| Style | - | 1/2 C |
| Termination | Solder | Solder |
1393640 Series
CONN DIN RCPT 48POS PCB RA GOLD
| Part | Contact Finish | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Style | Number of Rows | Number of Positions Loaded | Termination | Mounting Type | Material - Insulation | Level, Class | Material Flammability Rating | Connector Type | Pitch [x] | Pitch [x] | Number of Positions Loaded | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 4-1393640-2 | Gold, Gold-Palladium | 6, 42 | -55 °C | 125 °C | M | 3 | 42 | Solder | Through Hole, Right Angle | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 1 | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | ||
TE Connectivity AMP Connectors 8-1393640-3 | Gold, Gold-Palladium | 48 | -55 °C | 125 °C | C/2 | 3 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | All | 1/2 C | ||
TE Connectivity AMP Connectors 9-1393640-0 | Gold, Gold-Palladium | 96 | -55 °C | 125 °C | C | 3 | 64 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | |||
TE Connectivity AMP Connectors 8-1393640-6 | Gold, Gold-Palladium | 48 | C | 3 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 3 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | ||||||
TE Connectivity AMP Connectors 8-1393640-5 | Gold, Gold-Palladium | 48 | -55 °C | 125 °C | C/2 | 3 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | All | 1/2 C | ||
TE Connectivity AMP Connectors 4-1393640-3 | Gold, Gold-Palladium | 4, 60 | -55 °C | 125 °C | M | 3 | 60 | Solder | Through Hole, Right Angle | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 1 | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | ||
TE Connectivity AMP Connectors 7-1393640-8 | Gold, Gold-Palladium | 64 | -55 °C | 125 °C | B | 2 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | All | |||
TE Connectivity AMP Connectors 7-1393640-4 | Gold, Gold-Palladium | B | 2 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in | All | |||||||
TE Connectivity AMP Connectors 1393640-7 | Gold, Gold-Palladium | 48 | -55 °C | 125 °C | C/2 | 3 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | 1 | UL94 V-0 | Receptacle, Female Sockets | 2.54 mm | 0.1 in | All | 1/2 C | |
TE Connectivity AMP Connectors 7-1393640-9 | Gold, Gold-Palladium | 64 | B | 2 | Solder | Through Hole | Glass Filled, Polybutylene Terephthalate (PBT), Polyester | Receptacle, Female Sockets | 2.54 mm | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.33 | |
| 10 | $ 3.80 | |||
| 40 | $ 3.70 | |||
| 80 | $ 3.62 | |||
| 120 | $ 3.50 | |||
Description
General part information
1393640 Series
64 Position Din Connector Receptacle, Female Sockets Gold or Gold-Palladium Through Hole
