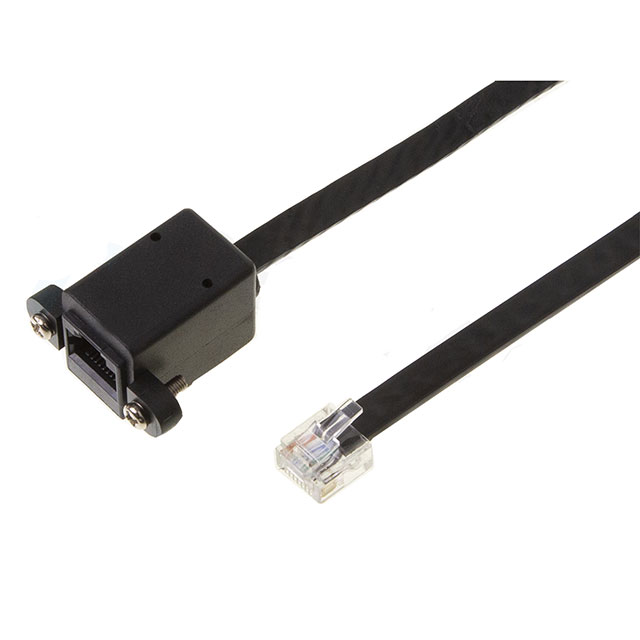

PN-F6K-MF-20-28

Active

Pactech

FLAT C6 28AWG MF PANEL MT 20 BK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PN-F6K-MF-20-28

Active

Pactech

FLAT C6 28AWG MF PANEL MT 20 BK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PN-F6K-MF-20-28

Cable Type	Flat, Straight Cable
Color	Black
Connector Type	Jack to Plug
Features	Flexible, 28AWG, Panel Mount
Features [radius]	10 mm
Features [x]	2.3 mm
Features [y]	7.2 mm
Length	509 mm
Length	1.67 ft
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Shielding	Unshielded
Style	Cat6

PN-F6K Series

Part	Style	Features [x]	Features	Features [radius]	Features [y]	Mounting Type	Length	Length	Number of Positions/Contacts	Color	Cable Type	Connector Type	Shielding	Features [custom]	Length [x]
Pactech PN-F6K-MF-20-28	Cat6	2.3 mm	28AWG Flexible Panel Mount	10 mm	7.2 mm	Free Hanging (In-Line)	509 mm	1.67 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Jack to Plug	Unshielded
Pactech PN-F6K-01.5-SN-28-Q	Cat6	2.3 mm	28AWG Flexible	10 mm	7.2 mm	Free Hanging (In-Line)	457.2 mm	1.5 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded
Pactech PN-F6K-05-SN-28-Q	Cat6	2.3 mm	28AWG Flexible	10 mm	7.2 mm	Free Hanging (In-Line)	1.52 m	5 '	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded
Pactech PN-F6K-01.5-SN-28-Q	Cat6	2.3 mm	28AWG Flexible	10 mm	7.2 mm	Free Hanging (In-Line)	457.2 mm	1.5 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded
Pactech PN-F6K-09.5-SN-28-Q	Cat6	2.3 mm	28AWG Flexible	10 mm	7.2 mm	Free Hanging (In-Line)	2.89 m	9.5 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded
Pactech PN-F6K-07-SN-28-LP	Cat6		28AWG Flexible Lightweight PVC	10 mm		Free Hanging (In-Line)	2.13 m	84 in	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded	20 mm
Pactech PN-F6K-MF-24-28	Cat6	2.3 mm	28AWG Flexible Panel Mount	10 mm	7.2 mm	Free Hanging (In-Line)	609.6 mm		8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Jack to Plug	Unshielded		2 '
Pactech PN-F6K-05.5-SN-28-Q	Cat6	2.3 mm	28AWG Flexible	10 mm	7.2 mm	Free Hanging (In-Line)	1.68 m	5.5 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded
Pactech PN-F6K-06.5-SN-28-Q	Cat6	2.3 mm	28AWG Flexible	10 mm	7.2 mm	Free Hanging (In-Line)	1.98 m	6.5 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Plug to Plug	Unshielded
Pactech PN-F6K-MF-06-28	Cat6	2.3 mm	28AWG Flexible Panel Mount	10 mm	7.2 mm	Free Hanging (In-Line)	152.4 mm	0.5 ft	8p8c (RJ45 Ethernet)	Black	Flat Straight Cable	Jack to Plug	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.35
		10	$ 8.10
		20	$ 7.93
		40	$ 7.68

Description

General part information

PN-F6K Series

Modular Cable Jack to Plug 8p8c (RJ45, Ethernet) 1.67' (509.0mm) Unshielded

Documents

Technical documentation and resources
