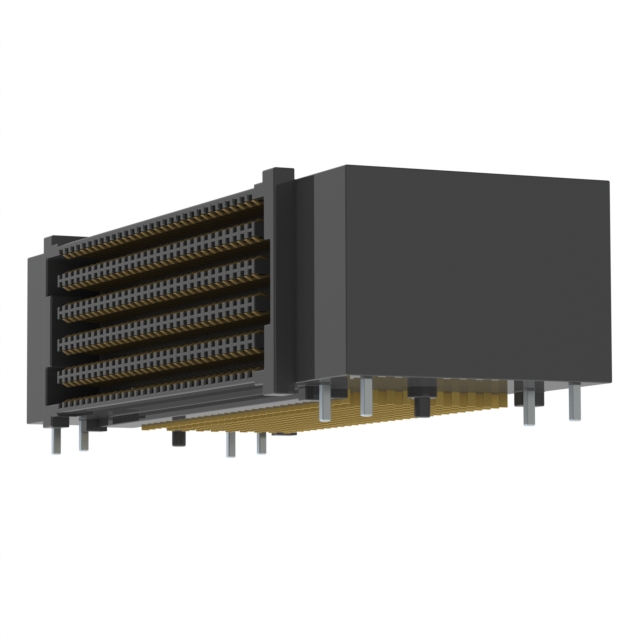

SEAF-030-01-L-10-2-A-LP-K-TR

Active

Samtec Inc.

CONN HD ARRAY RCPT 300P SMD GOLD

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HD ARRAY RCPT 300P SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	SEAF-030-01-L-10-2-A-LP-K-TR

Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Features	Board Guide, Pick and Place, Latches
Mounting Type	Surface Mount
Number of Positions	300
Number of Rows	10
Pitch [x]	0.05 in
Pitch [x]	1.27 mm

Part	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Features	Contact Finish
Samtec Inc. SEAF-030-01-L-10-2-A-LP-K-TR	300	Surface Mount	10 Áin	0.25 Ám	0.05 in	1.27 mm	10	High Density Array Female	Board Guide Latches Pick and Place	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

300 Position Connector High Density Array, Female Surface Mount Gold
