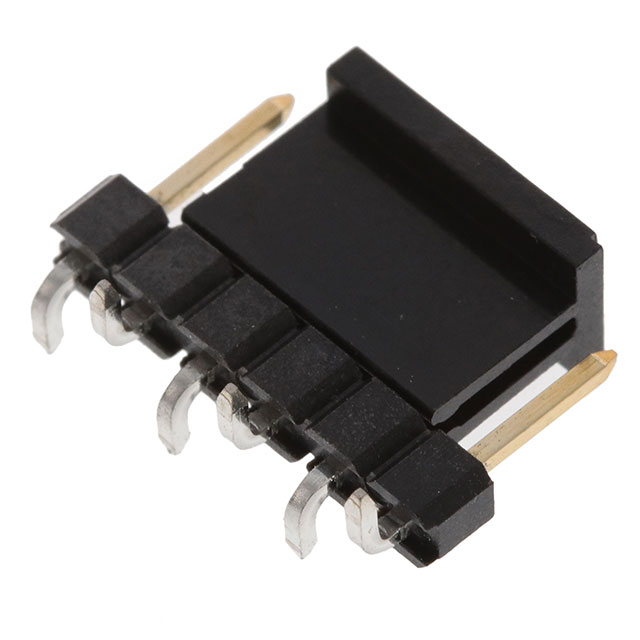

M20-8770642R

Active

Harwin Inc.

CONNECTOR, HEADER, 6POS, 2.54MM, 1ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsManufacturer Catalogue EN Drawing EN +3

M20-8770642R

Active

Harwin Inc.

CONNECTOR, HEADER, 6POS, 2.54MM, 1ROW

Deep-Dive with AI

DocumentsManufacturer Catalogue EN Drawing EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-8770642R

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Length - Mating	0.228 in
Contact Length - Mating	5.8 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	18.13 mm, 12.63 mm, 12.23 mm, 11.63 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

M20-877 Series

...

Part	Insulation Color	Connector Type	Contact Material	Current Rating (Amps)	Material Flammability Rating	Termination	Mated Stacking Heights	Contact Finish - Post	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Shape	Number of Positions Loaded	Insulation Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Fastening Type	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions	Features	Contact Finish - Mating
Harwin Inc. M20-8770546	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded
Harwin Inc. M20-8771046	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	10
Harwin Inc. M20-8771042P	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	10	Pick and Place	Gold
Harwin Inc. M20-8770642P	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	6	Pick and Place	Gold
Harwin Inc. M20-8770646R	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	6
Harwin Inc. M20-8772746	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	27
Harwin Inc. M20-8772242P	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	22 positions	Pick and Place	Gold
Harwin Inc. M20-8771542R	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	15		Gold
Harwin Inc. M20-8770346R	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded
Harwin Inc. M20-8770642R	Black	Cuttable Header	Brass	3 A	UL94 V-0	Solder	11.63 mm 12.23 mm 12.63 mm 18.13 mm	Tin	0.228 in	5.8 mm	0.1 in	2.54 mm	Square	All	Nylon 6T Polyamide (PA6T)	Male Pin	-40 °C	105 ░C	1	Push-Pull	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	Unshrouded	6		Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.78
		10	$ 0.66
		100	$ 0.59
	Digi-Reel®	1	$ 0.78
		10	$ 0.66
		100	$ 0.59
	Tape & Reel (TR)	450	$ 0.48
		900	$ 0.47
		1350	$ 0.43
		2250	$ 0.40
		3150	$ 0.39
		11250	$ 0.36
		22500	$ 0.35
Newark	Each (Supplied on Full Reel)	450	$ 0.46
		900	$ 0.41
		1800	$ 0.37

Description

General part information

M20-877 Series

Connector Header Surface Mount 6 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Manufacturer Catalogue EN

Datasheet

Drawing EN

Datasheet

M20-003

M20 Series Spec Sheet

Datasheet
