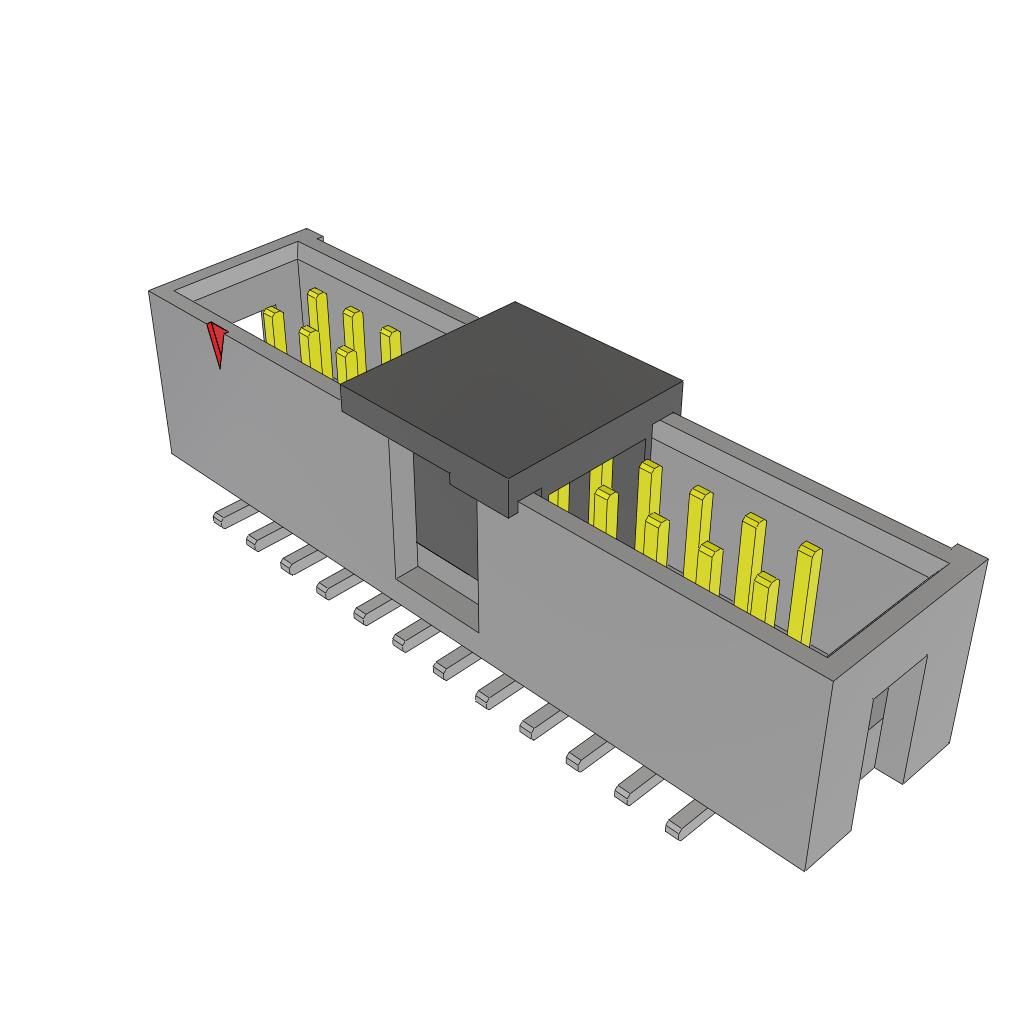

HTST-112-01-L-DV-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 24POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

Documents.100" High-Temp Shrouded Terminal Strip, Cable Mate HTST Datasheet +1

HTST-112-01-L-DV-A-P-TR

Active

Samtec Inc.

CONN HEADER SMD 24POS 2.54MM

Deep-Dive with AI

Documents.100" High-Temp Shrouded Terminal Strip, Cable Mate HTST Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HTST-112-01-L-DV-A-P-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Board Guide, Keying Slot, Pick and Place
Insulation Color	Natural
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

HTST-112 Series

Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate

Part	Insulation Color	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Post	Fastening Type	Termination	Features	Pitch - Mating	Pitch - Mating	Contact Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Contact Material	Number of Positions	Number of Positions Loaded	Shrouding	Contact Shape	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Style	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
Samtec Inc. HTST-112-01-TM-DV-P	Natural	Surface Mount	2.54 mm	0.1 in	2	0.35 in	8.89 mm	Tin	Push-Pull	Solder	Keying Slot Pick and Place	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	105 ░C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)
Samtec Inc. HTST-112-02-T-D
Samtec Inc. HTST-112-01-LM-DV-P-TR	Natural	Surface Mount	2.54 mm	0.1 in	2	0.35 in	8.89 mm	Tin	Push-Pull	Solder	Keying Slot Pick and Place	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	125 °C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Gold
Samtec Inc. HTST-112-01-F-DV	Natural	Surface Mount	2.54 mm	0.1 in	2	0.35 in	8.89 mm	Tin	Push-Pull	Solder	Keying Slot	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	125 °C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	3 µin	0.076 µm	Gold
Samtec Inc. HTST-112-01-L-DV-A-P-TR	Natural	Surface Mount	2.54 mm	0.1 in	2	0.35 in	8.89 mm	Tin	Push-Pull	Solder	Board Guide Keying Slot Pick and Place	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	125 °C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Gold
Samtec Inc. HTST-112-04-L-D-RA	Natural	Through Hole Right Angle	2.54 mm	0.1 in	2			Tin	Push-Pull	Solder	Keying Slot	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	125 °C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Gold	0.365 in	9.27 mm	0.13 in	3.3 mm
Samtec Inc. HTST-112-01-L-DV-P-TR	Natural	Surface Mount	2.54 mm	0.1 in	2	0.35 in	8.89 mm	Tin	Push-Pull	Solder	Keying Slot Pick and Place	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	125 °C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Gold
Samtec Inc. HTST-112-01-L-DV-TR	Natural	Surface Mount	2.54 mm	0.1 in	2	0.35 in	8.89 mm	Tin	Push-Pull	Solder	Keying Slot	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	125 °C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Gold
Samtec Inc. HTST-112-04-T-D-RA	Natural	Through Hole Right Angle	2.54 mm	0.1 in	2			Tin	Push-Pull	Solder	Keying Slot	0.1 in	2.54 mm	Male Pin	UL94 V-0	6.35 mm	0.25 in	Phosphor Bronze	24	All	Shrouded - 4 Wall	Square	Header	105 ░C	-55 °C	Board to Cable/Wire	Liquid Crystal Polymer (LCP)				0.365 in	9.27 mm	0.13 in	3.3 mm
Samtec Inc. HTST-112-02-F-D

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	125	$ 4.10

Description

General part information

HTST-112 Series

Headers & Wire Housings .100" High-Temp Shrouded Terminal Strip, Cable Mate

Documents

Technical documentation and resources

.100" High-Temp Shrouded Terminal Strip, Cable Mate

HTST Datasheet

Datasheet
