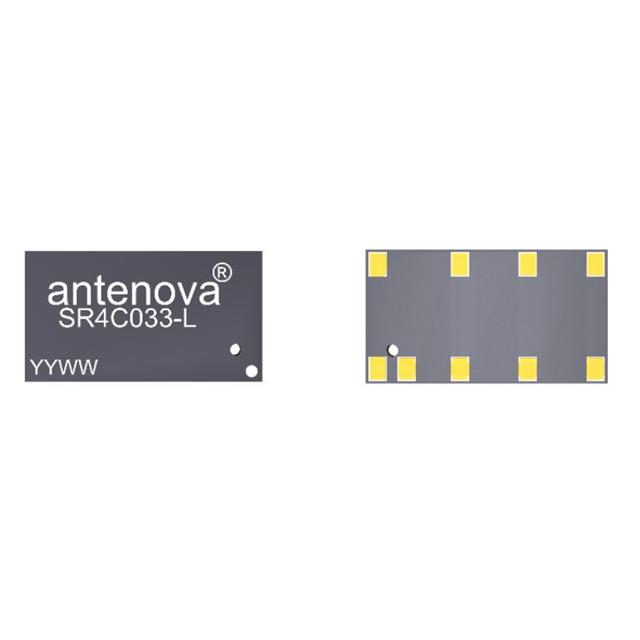

SR4C033-L

Active

Antenova

ANTENNA SMD -1.5DBI GAIN 960MHZ 9-PIN SMD T/R

Search across all available documentation for this part.

Active

Antenova

ANTENNA SMD -1.5DBI GAIN 960MHZ 9-PIN SMD T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR4C033-L	SR4C033 Series

Antenna Type	Chip	Chip
For Use With/Related Products	-	SR4C033-L, SR4C033-R
Frequency	-	791 MHz
Frequency	-	960 MHz
Frequency Group [Max]	1 GHz	1 GHz
Frequency Group [Min]	300 MHz	300 MHz
Frequency Range [Max]	960 MHz	960 MHz
Frequency Range [Min]	791 MHz	791 MHz
Height (Max) [Max]	0.063 in	0.063 in
Height (Max) [Max]	1.6 mm	1.6 mm
Mounting Type	Surface Mount	Surface Mount
Number of Bands	1	1
Return Loss	-9 dB	-9 dB
Supplied Contents	-	Board(s)
Termination	Solder	Solder
Type	-	Antenna
VSWR	2.6	2.6

LATONA LEFT EVALUATION BOARD

Part	Supplied Contents	For Use With/Related Products	Frequency [Min]	Frequency [Max]	Type	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Frequency Group [Max]	Frequency Group [Min]	VSWR	Termination	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Return Loss	Number of Bands
Antenova SR4C033-EVB-2	Board(s)	SR4C033-L	791 MHz	960 MHz	Antenna
Antenova SR4C033-R						Surface Mount	0.063 in	1.6 mm	1 GHz	300 MHz	2.6	Solder	960 MHz	791 MHz	Chip	-9 dB
Antenova SR4C033-L						Surface Mount	0.063 in	1.6 mm	1 GHz	300 MHz	2.6	Solder	960 MHz	791 MHz	Chip	-9 dB	1
Antenova SR4C033-EVB-1	Board(s)	SR4C033-R	791 MHz	960 MHz	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Chip Solder Surface Mount
