SR4C033-EVB-2

Active

Antenova

LATONA LEFT EVALUATION BOARD

Search across all available documentation for this part.

Active

Antenova

LATONA LEFT EVALUATION BOARD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SR4C033-EVB-2	SR4C033 Series

Antenna Type	-	Chip
For Use With/Related Products	SR4C033-L	SR4C033-L, SR4C033-R
Frequency [Max]	960 MHz	960 MHz
Frequency [Min]	791 MHz	791 MHz
Frequency Group	-	1 GHz
Frequency Group	-	300 MHz
Frequency Range	-	960 MHz
Frequency Range	-	791 MHz
Height (Max)	-	0.063 in
Height (Max)	-	1.6 mm
Mounting Type	-	Surface Mount
Number of Bands	-	1
Return Loss	-	-9 dB
Supplied Contents	Board(s)	Board(s)
Termination	-	Solder
Type	Antenna	Antenna
VSWR	-	2.6

LATONA LEFT EVALUATION BOARD

Part	Supplied Contents	For Use With/Related Products	Frequency [Min]	Frequency [Max]	Type	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Frequency Group [Max]	Frequency Group [Min]	VSWR	Termination	Frequency Range [Max]	Frequency Range [Min]	Antenna Type	Return Loss	Number of Bands
Antenova SR4C033-EVB-2	Board(s)	SR4C033-L	791 MHz	960 MHz	Antenna
Antenova SR4C033-R						Surface Mount	0.063 in	1.6 mm	1 GHz	300 MHz	2.6	Solder	960 MHz	791 MHz	Chip	-9 dB
Antenova SR4C033-L						Surface Mount	0.063 in	1.6 mm	1 GHz	300 MHz	2.6	Solder	960 MHz	791 MHz	Chip	-9 dB	1
Antenova SR4C033-EVB-1	Board(s)	SR4C033-R	791 MHz	960 MHz	Antenna

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.00

General part information

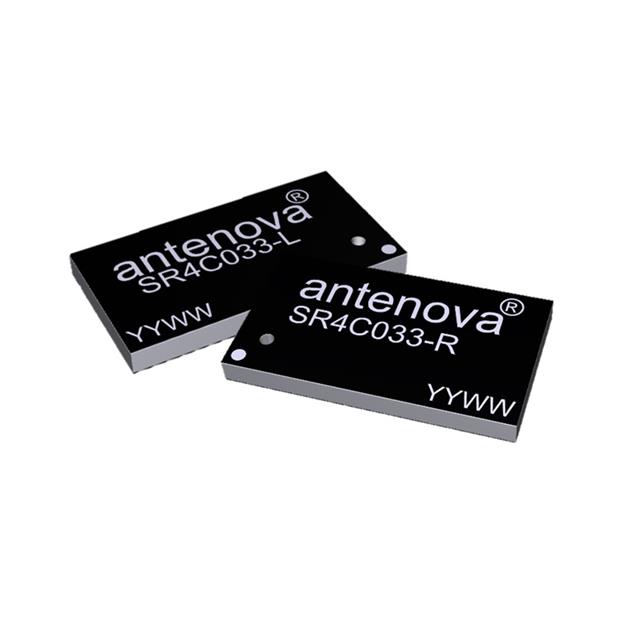

Latona SR4C033-L Antenna 791MHz ~ 960MHz Evaluation Board
