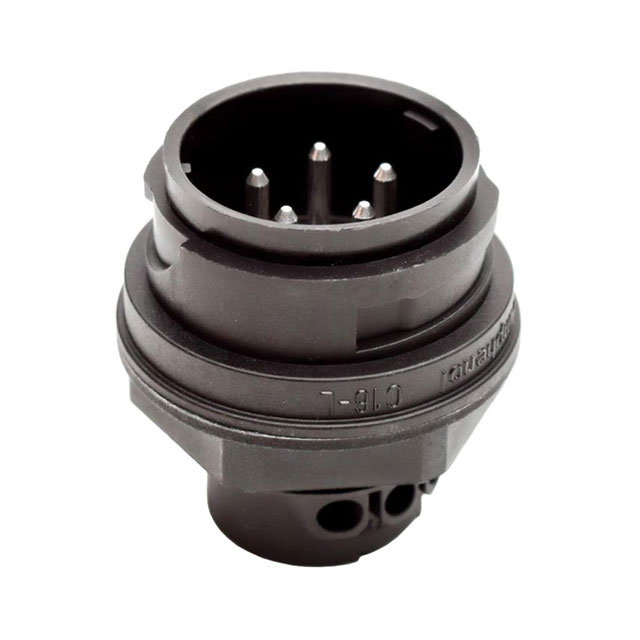

C016 20P004 8002

Active

Amphenol Tuchel Industrial

CONN RCPT MALE 5POS SCREW

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT MALE 5POS SCREW

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C016 20P004 8002	C016 20P004 Series

Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mounting Feature	Bulkhead	Bulkhead
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	5	5
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	2	2
Termination	Screw	Screw

CONN RCPT MALE 5POS SCREW

Part	Shell Material	Fastening Type	Termination	Primary Material	Shell Size - Insert	Mounting Feature	Orientation	Number of Positions	Ingress Protection	Operating Temperature [custom]	Mounting Type	Connector Type
Amphenol Tuchel Industrial C016 20P004 8022	Polyamide (PA66), Nylon 6/6	Bayonet Lock	Screw	Plastic	2	Bulkhead	Keyed	5	IP65 - Dust Tight, Water Resistant	-25 °C, 100 °C	Panel Mount, Through Hole	Male Pins, Receptacle
Amphenol Tuchel Industrial C016 20P004 8002	Polyamide (PA66), Nylon 6/6	Bayonet Lock	Screw	Plastic	2	Bulkhead	Keyed	5	IP65 - Dust Tight, Water Resistant	-25 °C, 100 °C	Panel Mount, Through Hole	Male Pins, Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 (4 + PE) Position Circular Connector Receptacle, Male Pins Screw
