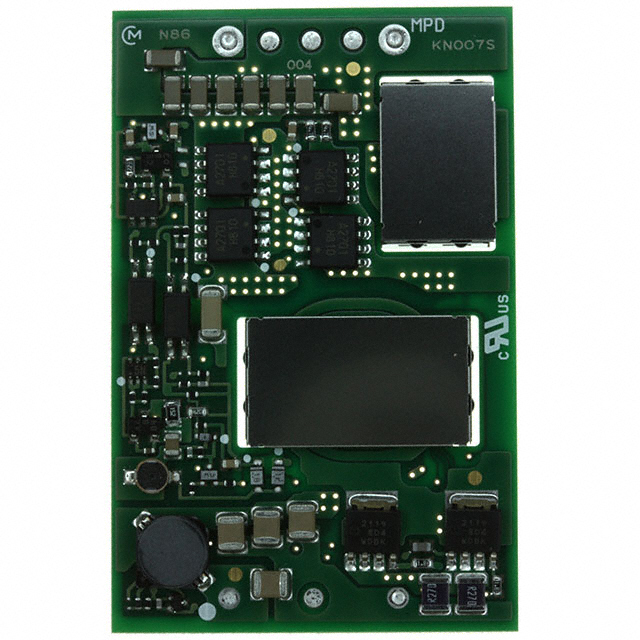

MPDKN007S

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 50W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 3.3V 50W

Technical Specifications

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 3.3V 50W

Part	Voltage - Input (Max) [Max]	Mounting Type	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Package / Case	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Isolation
Murata Power Solutions Inc. MPDKN007S	75 V	Through Hole	Isolated Module	3.3 V	36 V	50 W	ITE (Commercial)	2.24 "	1.45 in	0.22 in	56.9 mm	36.8 mm	5.5 mm	1	1/4 Brick, 8-DIP Module	88 %	85 °C	-40 °C	15 A	1.5 kV
Murata Power Solutions Inc. MPDKN118S	75 V	Through Hole	Isolated Module	5 V	36 V	65 W	ITE (Commercial)	2.24 "	0.86 "	0.35 "	56.9 mm	21.9 mm	9 mm	1	1/8 Brick, 8-DIP Module	90 %	85 °C	-40 °C	13 A	1.5 kV
Murata Power Solutions Inc. MPDKN117S	75 V	Through Hole	Isolated Module	3.3 V	36 V		ITE (Commercial)	2.24 "	0.86 "	0.35 "	56.9 mm	21.9 mm	9 mm	1	1/8 Brick, 8-DIP Module	89 %	85 °C	-40 °C	20 A	1.5 kV
Murata Power Solutions Inc. MPDKN008S	75 V	Through Hole	Isolated Module	5 V	36 V	50 W	ITE (Commercial)	2.24 "	1.45 in	0.22 in	56.9 mm	36.8 mm	5.5 mm	1	1/4 Brick, 8-DIP Module	89 %	85 °C	-40 °C	10 A	1.5 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 15A 36V - 75V Input
