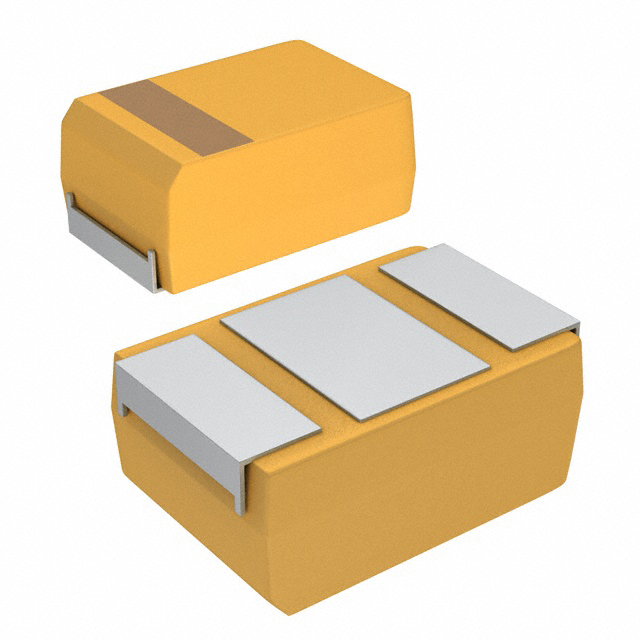

CWR09FB475KB

Active

KEMET

CAP TANT 4.7UF 10% 10V 1510

Search across all available documentation for this part.

Active

KEMET

CAP TANT 4.7UF 10% 10V 1510

Technical Specifications

Parameters and characteristics for this part

Specification	CWR09FB475KB

Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	4.5 Ohm
Failure Rate	B (0.1%)
Features	High Reliability
Grade	Military
Height - Seated (Max) [Max] [z]	1.65 mm
Height - Seated (Max) [Max] [z]	0.065 "
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3825
Package / Case	1510
Qualification	MIL-PRF-55365/4
Size / Dimension [x]	0.15 "
Size / Dimension [x]	3.81 mm
Size / Dimension [y]	0.1 in
Size / Dimension [y]	2.54 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	10 V

Part	ESR (Equivalent Series Resistance)	Failure Rate	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Manufacturer Size Code	Features	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Rated	Qualification	Mounting Type	Type	Package / Case	Package / Case	Tolerance	Grade
KEMET CWR09FB475KB	4.5 Ohm	B (0.1%)	4.7 µF	-55 °C	125 °C	D	High Reliability	1.65 mm	0.065 "	0.15 "	3.81 mm	0.1 in	2.54 mm	10 V	MIL-PRF-55365/4	Surface Mount	Molded	3825	1510	10 %	Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 12.03
	Cut Tape (CT)	1	$ 11.74
	Digi-Reel®	1	$ 11.74
	Tape & Reel (TR)	2500	$ 7.26

General part information

4.7 µF Molded Tantalum Capacitors 10 V 1510 (3825 Metric) 4.5Ohm
