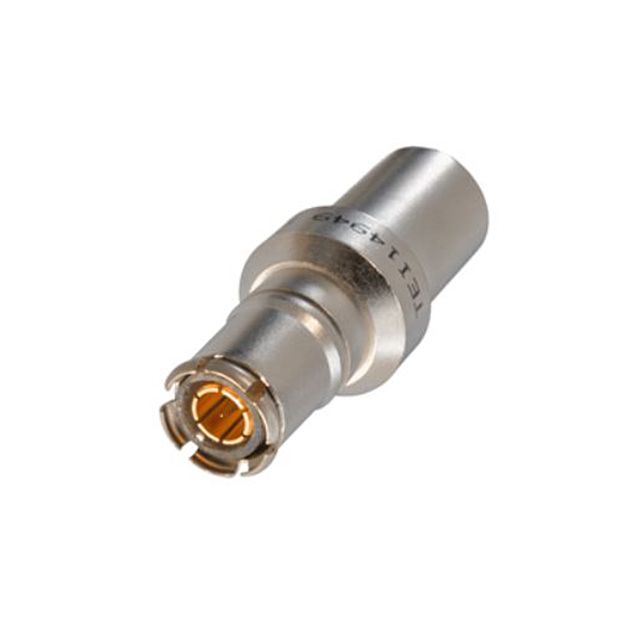

PL73C-201

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG STR CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN TRB PLUG STR CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	PL73C-201

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/176-00002
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Crimp
Fastening Type	Snap-On
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

CONN TRB PLUG STR CRIMP

Part	Fastening Type	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Impedance	Includes	Connector Type	Body Material	Housing Color	Cable Group	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Mounting Type	Shield Termination	Body Finish	Mating Cycles	Voltage Rating	Contact Termination	Connector Style
Cinch Connectivity Solutions Trompeter PL73C-201	Snap-On	500 MHz	Gold	Beryllium Copper	Non-Constant	1 Connector, 1 Heat Shrink, 1 Strain Relief	Plug, Male Pin (Concentric)	Brass	Silver	M17/176-00002	-65 ░C	165 °C	1	Free Hanging (In-Line)	Crimp	Nickel	500	400 V	Crimp	TRB, Twinaxial/Triaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp
