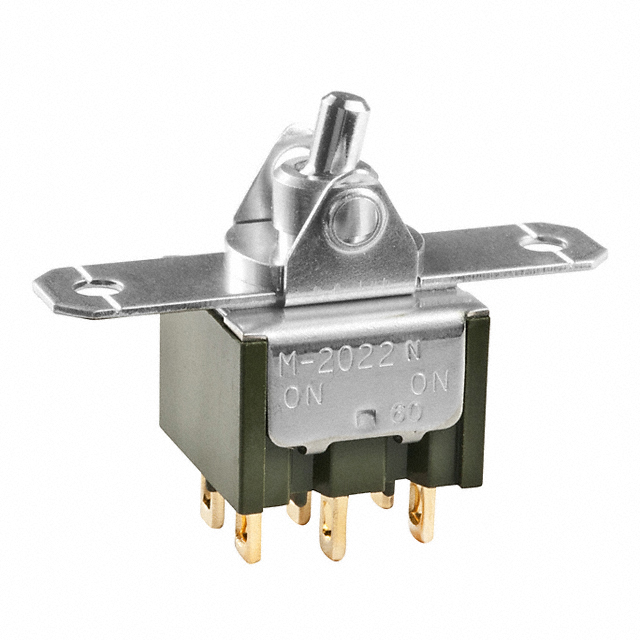

M2022TNG01-DA

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M2022TNG01-DA

Obsolete

NKK Switches

SWITCH ROCKER DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2022TNG01-DA

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	17.8 mm
Panel Cutout Dimensions [y]	10.1 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

M2022TN Series

Part	Circuit	Electrical Life	Approval Agency	Features	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Function	Termination Style	Current Rating (Amps)	Mounting Type	Actuator Marking	Color - Actuator/Cap
NKK Switches M2022TNW01-GH	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Paddle	125 V	12.4 mm	12.7 mm	On-On	Solder Lug	4 A 6 A	Flange Panel Mount	No Marking
NKK Switches M2022TNW01-DB	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Concave (Standard V)	125 V	10.1 mm	17.8 mm	On-On	Solder Lug	4 A 6 A	Flange Panel Mount	No Marking	White
NKK Switches M2022TNW01	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Actuator Arm Cap Required	125 V			On-On	Solder Lug	4 A 6 A	Flange Panel Mount	Varies by Cap
NKK Switches M2022TNW03	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Actuator Arm Cap Required	125 V			On-On	PC Pin	4 A 6 A	Flange Panel Mount	Varies by Cap
NKK Switches M2022TNG01-DA	DPDT	50000 Cycles	CSA UL	Epoxy Sealed Terminals	28 V	-30 ░C	85 °C	Concave (Standard V)	28 V	10.1 mm	17.8 mm	On-On	Solder Lug	0.4 VA	Flange Panel Mount	No Marking	Black
NKK Switches M2022TNW01/U-DA	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals		-30 ░C	85 °C	Concave (Standard V)	125 V	10.1 mm	17.8 mm	On-On	Solder Lug	6 A	Flange Panel Mount	No Marking	Black
NKK Switches M2022TNW01-DC	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Concave (Standard V)	125 V	10.1 mm	17.8 mm	On-On	Solder Lug	4 A 6 A	Flange Panel Mount	No Marking	Red
NKK Switches M2022TNW03-GA	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Paddle	125 V	12.4 mm	12.7 mm	On-On	PC Pin	4 A 6 A	Flange Panel Mount	No Marking	Black
NKK Switches M2022TNW01-EA	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Paddle	125 V	10.1 mm	17.8 mm	On-On	Solder Lug	4 A 6 A	Flange Panel Mount	No Marking	Black
NKK Switches M2022TNW01/CUL	DPDT	25000 Steps	CSA UL	Epoxy Sealed Terminals	30 V	-30 ░C	85 °C	Actuator Arm Cap Required	125 V			On-On	Solder Lug	4 A 6 A	Flange Panel Mount	Varies by Cap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M2022TN Series

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Panel Mount, Flange
