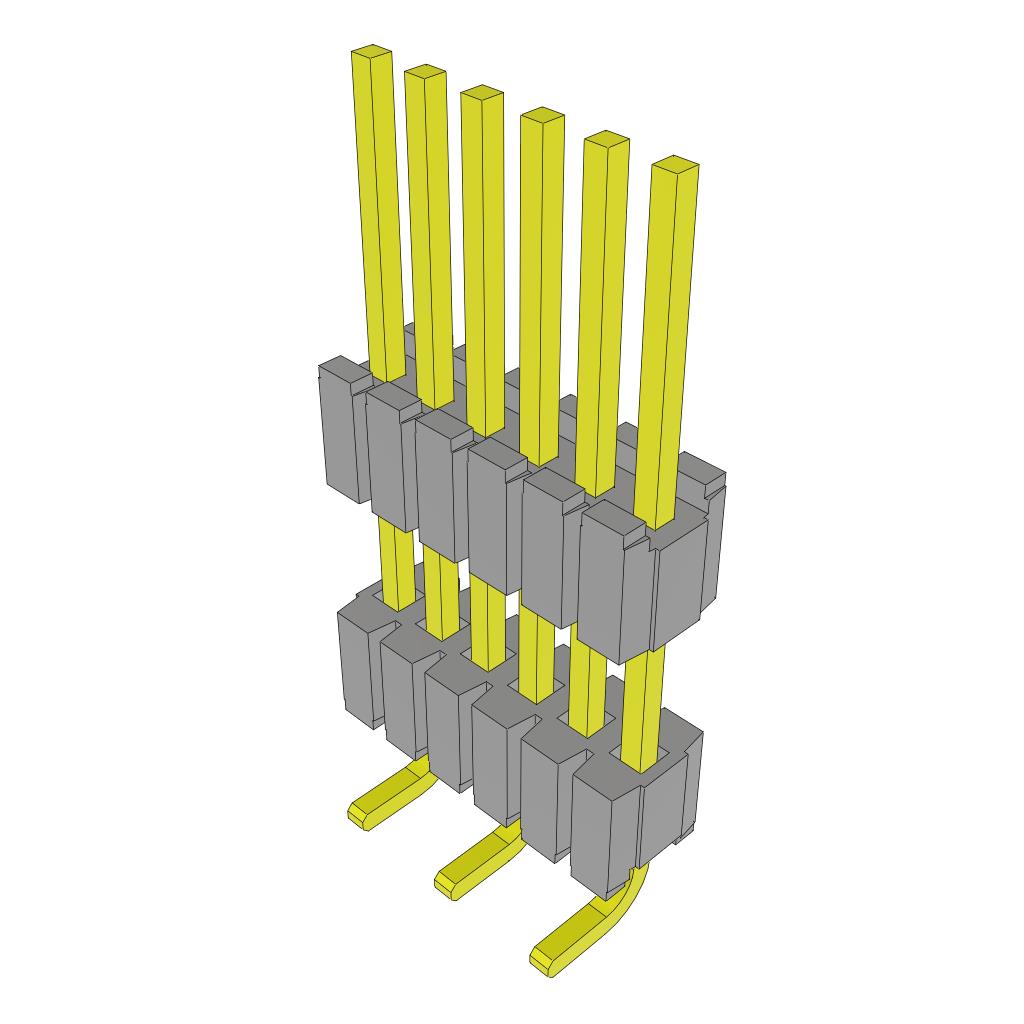

HDWM-06-58-S-S-370-SM

Active

Samtec Inc.

CONN HDR 6POS 0.05 STACK SMD

Deep-Dive with AI

Documents.050" X .100" Flex Stack, High-Temp Micro Board Stacker HDWM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDWM-06-58-S-S-370-SM

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	30 µin
Contact Finish Thickness - Post (Mating)	0.76 µm
Length - Overall Pin	0.805 in
Length - Overall Pin	20.447 mm
Length - Post (Mating) [x]	0.435 in
Length - Post (Mating) [x]	11.049 mm
Mounting Type	Surface Mount
Number of Positions	6
Number of Rows	1
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Termination	Solder

HDWM-06 Series

Part	Length - Tail [x]	Length - Tail [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Contact Finish - Post (Mating)	Number of Positions	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Termination	Pitch [x]	Pitch [x]	Number of Rows	Length - Stack Height [x]	Length - Stack Height [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Row Spacing [x]	Row Spacing	Color	Mounting Type	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HDWM-06-60-L-D-547	0.12 in	3.048 mm	4.013 mm	0.158 in	Gold	12	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	2	0.547 in	13.894 mm	20.955 mm	0.825 in	0.1 in	2.54 mm	Black	Through Hole
Samtec Inc. HDWM-06-58-S-S-307-SM			11.049 mm	0.435 in	Gold	6	0.76 µm	30 µin	Solder	0.05 in	1.27 mm	1	0.307 in	7.798 mm	18.847 mm	0.742 in			Black	Surface Mount
Samtec Inc. HDWM-06-59-G-S-510	0.12 in	3.048 mm	3.175 mm	0.125 in	Gold	6	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	1	0.51 in	12.954 mm	19.177 mm	0.755 in			Black	Through Hole
Samtec Inc. HDWM-06-55-G-D-322-SM-P			8.636 mm	0.34 in	Gold	12	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	2	0.322 in	8.179 mm		0.662 "	0.1 in	2.54 mm	Black	Surface Mount	16.815 mm
Samtec Inc. HDWM-06-58-G-D-400-SM			11.049 mm	0.435 in	Gold	12	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	2	0.4 in	10.16 mm	21.209 mm	0.835 in	0.1 in	2.54 mm	Black	Surface Mount
Samtec Inc. HDWM-06-58-S-S-370-SM			11.049 mm	0.435 in	Gold	6	0.76 µm	30 µin	Solder	0.05 in	1.27 mm	1							Black	Surface Mount	20.447 mm	0.805 in
Samtec Inc. HDWM-06-53-G-S-290	0.12 in	3.048 mm	2.413 mm	0.095 in	Gold	6	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	1	0.29 in	7.366 mm	12.827 mm	0.505 in			Black	Through Hole
Samtec Inc. HDWM-06-01-G-S-250-SM			4.572 mm	0.18 in	Gold	6	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	1	0.25 in	6.35 mm	10.922 mm	0.43 in			Black	Surface Mount
Samtec Inc. HDWM-06-61-L-D-748-LC	0.12 in	3.048 mm	4.623 mm	0.182 in	Gold	12	0.25 Ám	10 Áin	Solder	0.05 in	1.27 mm	2			26.67 mm	1.05 in	0.1 in	2.54 mm	Black	Through Hole			0.748 in	19 mm
Samtec Inc. HDWM-06-57-S-D-350-SM			9.652 mm	0.38 in	Gold	12	0.76 µm	30 µin	Solder	0.05 in	1.27 mm	2	0.35 in	8.89 mm	18.542 mm	0.73 in	0.1 in	2.54 mm	Black	Surface Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.51
		10	$ 2.69
		100	$ 2.07
		500	$ 1.75
		1000	$ 1.63
		5000	$ 1.40

Description

General part information

HDWM-06 Series

6 Position Header Spacer Connector 0.050" (1.27mm) Gold Surface Mount

Documents

Technical documentation and resources

.050" X .100" Flex Stack, High-Temp Micro Board Stacker

HDWM Datasheet

Datasheet
