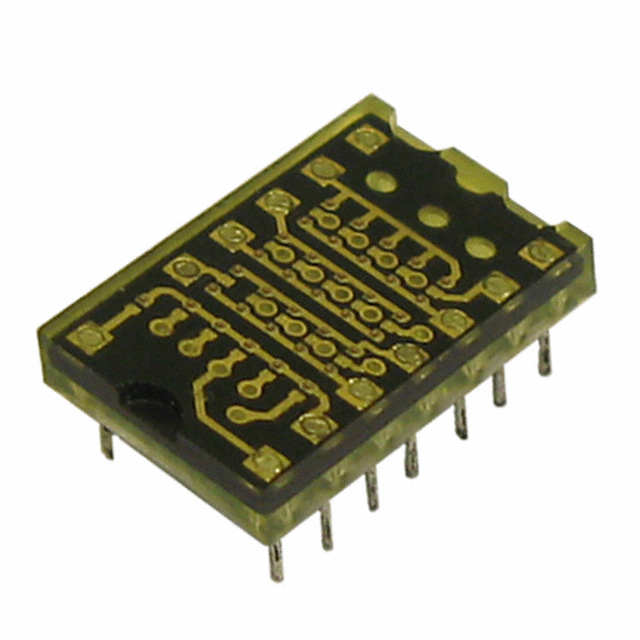

XMUY07C

Active

SunLED

LED DOT MATRIX 5X7 0.3" YLW CC

Search across all available documentation for this part.

Active

SunLED

LED DOT MATRIX 5X7 0.3" YLW CC

Technical Specifications

Parameters and characteristics for this part

Specification	XMUY07C

Color	Yellow
Configuration [x]	5
Configuration [y]	7
Internal Connection	Common Cathode Column, Common Anode Row
Millicandela Rating	2 mcd
Size / Dimension [x]	0.73 in
Size / Dimension [x]	18.5 mm
Size / Dimension [y]	9.8 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	0.12 in
Size / Dimension [z]	3.1 mm
Voltage - Forward (Vf) (Typ)	1.95 V

Part	Millicandela Rating	Internal Connection	Color	Configuration [y]	Configuration [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)
SunLED XMUY07C	2 mcd	Common Anode Row Common Cathode Column	Yellow	7	5	9.8 mm	0.39 "	0.12 in	3.1 mm	0.73 in	18.5 mm	1.95 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Dot Matrix Display Module 5 x 7 Common Anode Row, Common Cathode Column Yellow 1.95V 0.73" L x 0.39" W x 0.12" H (18.50mm x 9.80mm x 3.10mm)
