HW-05-17-T-S-220-080

Active

Samtec Inc.

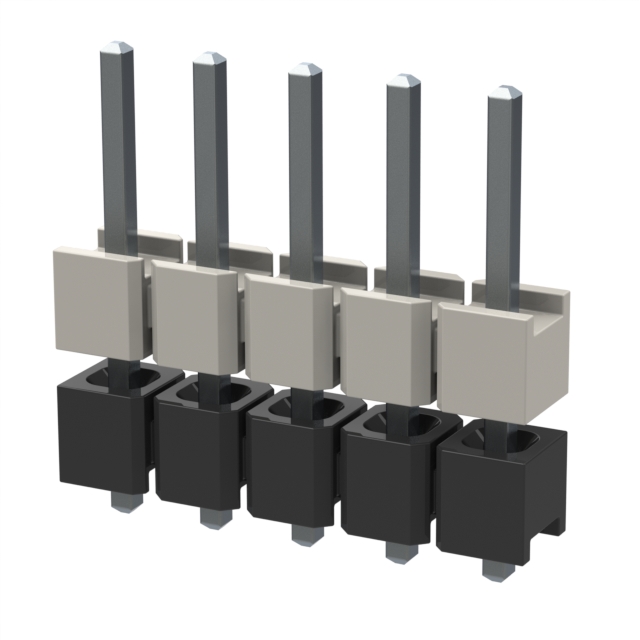

CONN HDR 5POS 0.1 STACK T/H

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HW-05-17-T-S-220-080

Active

Samtec Inc.

CONN HDR 5POS 0.1 STACK T/H

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW-05-17-T-S-220-080

Color	Black
Contact Finish - Post (Mating)	Tin
Length - Overall Pin	12.192 mm
Length - Overall Pin [x]	0.48 in
Length - Post (Mating) [x]	4.572 mm
Length - Post (Mating) [x]	0.18 in
Length - Tail [x]	0.08 in
Length - Tail [x]	2.032 mm
Mounting Type	Through Hole
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

HW-05-17 Series

Part	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Number of Positions	Length - Tail	Length - Tail	Contact Finish - Post (Mating)	Row Spacing [x]	Row Spacing	Termination	Color	Length - Overall Pin	Length - Overall Pin [x]	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Number of Rows	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Tail [x]	Length - Tail [x]	Length - Overall Pin [x]	Length - Stack Height [z]	Length - Stack Height [z]
Samtec Inc. HW-05-17-S-D-250-110	2.54 mm	0.1 in	0.25 in	6.35 mm	10	2.8 mm	0.11 in	Gold	0.1 in	2.54 mm	Solder	Black	12.192 mm	0.48 in	Through Hole	30 µin	0.76 µm	2	3.048 mm	0.12 in
Samtec Inc. HW-05-17-T-S-220-080	2.54 mm	0.1 in						Tin			Solder	Black	12.192 mm	0.48 in	Through Hole			1	4.572 mm	0.18 in	0.08 in	2.032 mm
Samtec Inc. HW-05-17-G-D-250-SM-010	2.54 mm	0.1 in	0.25 in	6.35 mm	10			Gold	0.1 in	2.54 mm	Solder	Black		0.415 in	Surface Mount	10 Áin	0.25 Ám	2	4.191 mm	0.165 in			10.541 mm
Samtec Inc. HW-05-17-F-D-271-SM-A	2.54 mm	0.1 in	0.271 in	6.883 mm	10			Gold	0.1 in	2.54 mm	Solder	Black		0.415 in	Surface Mount	3 Áin	0.076 Ám	2	3.658 mm	0.144 in			10.541 mm
Samtec Inc. HW-05-17-S-D-250-SM-A	2.54 mm	0.1 in	0.25 in	6.35 mm	10			Gold	0.1 in	2.54 mm	Solder	Black		0.415 in	Surface Mount	30 µin	0.76 µm	2	4.191 mm	0.165 in			10.541 mm
Samtec Inc. HW-05-17-TM-D-200-110	2.54 mm	0.1 in			10	2.8 mm	0.11 in	Tin	0.1 in	2.54 mm	Solder	Black	12.192 mm	0.48 in	Through Hole			2	4.318 mm	0.17 in
Samtec Inc. HW-05-17-L-D-250-SM	2.54 mm	0.1 in	0.25 in	6.35 mm	10			Gold	0.1 in	2.54 mm	Solder	Black		0.415 in	Surface Mount	10 Áin	0.25 Ám	2	4.191 mm	0.165 in			10.541 mm
Samtec Inc. HW-05-17-F-D-320-SM	2.54 mm	0.1 in			10			Gold	0.1 in	2.54 mm	Solder	Black		0.415 in	Surface Mount	3 Áin	0.076 Ám	2	2.413 mm	0.095 in			10.541 mm	0.32 in	8.128 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.74

Description

General part information

HW-05-17 Series

5 Position Header Spacer Connector 0.100" (2.54mm) Tin Through Hole
