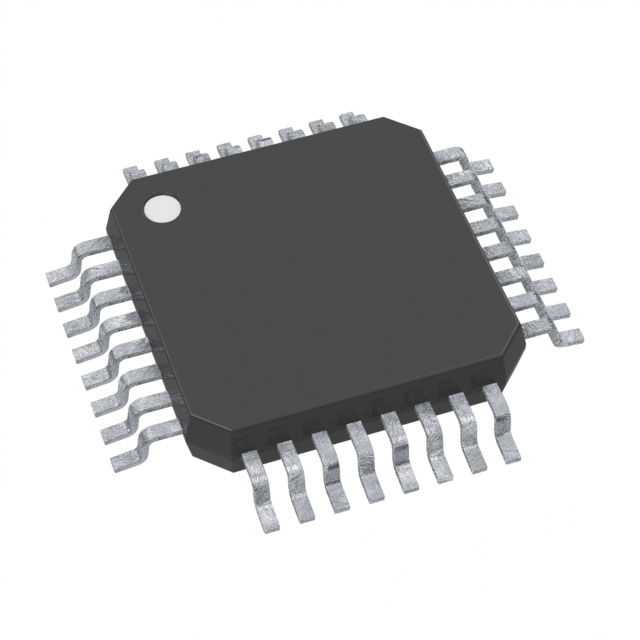

ML51PB9AE

Active

Nuvoton Technology Corporation

IC MCU 8BIT 16KB FLASH 32LQFP

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

IC MCU 8BIT 16KB FLASH 32LQFP

Technical Specifications

Parameters and characteristics for this part

Specification	ML51PB9AE

Connectivity	I2C, SPI, UART/USART
Core Processor	8051
Core Size	8-Bit
Data Converters	12 b
Data Converters	SAR
Data Converters [x]	8
Mounting Type	Surface Mount
Number of I/O	28
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	32-LQFP
Peripherals	Brown-out Detect/Reset, LVR, PWM, POR, WDT
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	1 K
Speed	24 MHz
Supplier Device Package	32-LQFP (7x7)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	1.8 V

IC MCU 8BIT 16KB FLASH 32LQFP

Part	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Connectivity	Mounting Type	Core Size	Data Converters [x]	Data Converters	Data Converters	Core Processor	Speed	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Number of I/O	Peripherals	RAM Size	Program Memory Size	Program Memory Type
Nuvoton Technology Corporation ML51PB9AE	Internal	105 °C	-40 °C	32-LQFP	I2C, SPI, UART/USART	Surface Mount	8-Bit	8	12 b	SAR	8051	24 MHz	1.8 V	5.5 V	32-LQFP (7x7)	28	Brown-out Detect/Reset, LVR, POR, PWM, WDT	1 K	16 KB	FLASH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 0.96

General part information

8051 NuMicro ML51 Microcontroller IC 8-Bit 24MHz 16KB (16K x 8) FLASH 32-LQFP (7x7)
