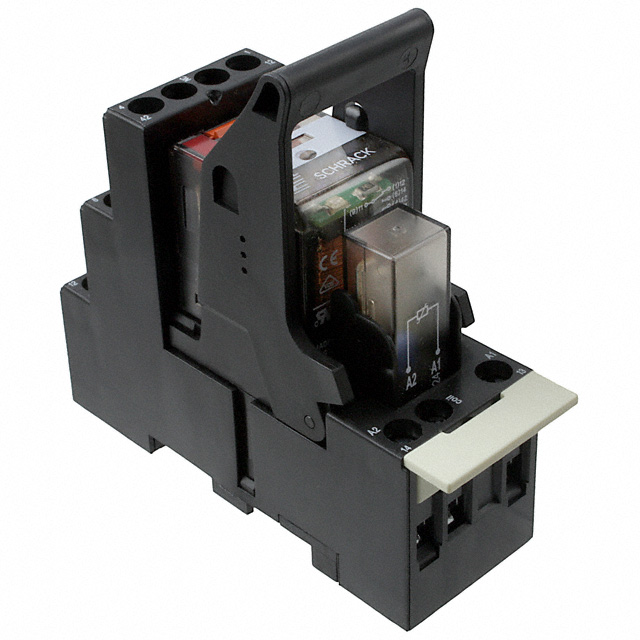

PT2L7RC4

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 12A 24V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 12A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	PT2L7RC4

Approval Agency	cURus, VDE
Coil Current	125 mA
Coil Insulation	Class F
Coil Resistance	192 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Features	Socket Included, Lighted Indicator, Mechanical Indicator, Test Button
Load - Max Switching	4800 VA
Mounting Type	DIN Rail
Must Operate Voltage	19.2 VAC
Must Release Voltage	7.2 VAC
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage [Max]	400 VAC
Termination Style	Screw Terminal

Part	Contact Form	Termination Style	Coil Resistance	Contact Rating (Current)	Features	Coil Current	Coil Insulation	Switching Voltage [Max]	Coil Voltage	Mounting Type	Coil Type	Contact Material	Must Release Voltage	Must Operate Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Load - Max Switching	Relay Type	Release Time	Operate Time
TE Connectivity Potter & Brumfield Relays PT2L7RC4	DPDT (2 Form C)	Screw Terminal	192 Ohms	12 A	Lighted Indicator Mechanical Indicator Socket Included Test Button	125 mA	Class F	400 VAC	24 VAC	DIN Rail	Non Latching	Silver Nickel (AgNi)	7.2 VAC	19.2 VAC	-40 °C	70 °C	cURus VDE	4800 VA	General Purpose
TE Connectivity Potter & Brumfield Relays PT2L7LB2	DPDT (2 Form C)	Screw Terminal	192 Ohms	12 A	Diode Lighted Indicator Mechanical Indicator Socket Included Test Button	62.5 mA	Class F	400 VAC	12 VDC	DIN Rail	Non Latching	Silver Nickel (AgNi)	1.2 VDC	9 VDC	-40 °C	70 °C	cURus VDE	4800 VA	General Purpose	18 ms	15 ms
TE Connectivity Potter & Brumfield Relays PT2L7LC4	DPDT (2 Form C)	Screw Terminal	777 Ohms	12 A	Diode Lighted Indicator Mechanical Indicator Socket Included Test Button	30.8 mA	Class F	400 VAC	24 VDC	DIN Rail	Non Latching	Silver Nickel (AgNi)	2.4 VDC	18 VDC	-40 °C	70 °C	cURus VDE	4800 VA	General Purpose	18 ms	15 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	150	$ 26.68

General part information

General Purpose Relay DPDT (2 Form C) 24VAC Coil DIN Rail
