ActiveTE Connectivity AMP Connectors

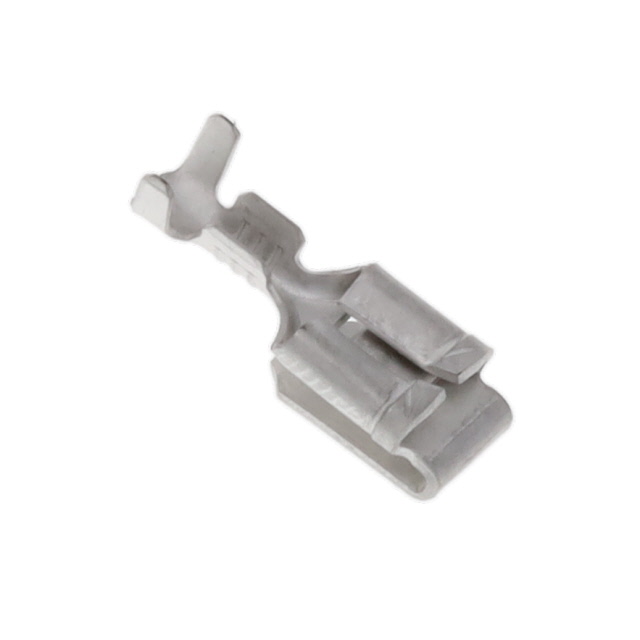

CONN QC RCPT/TAB 18-22AWG 0.187
Deep-Dive with AI
Search across all available documentation for this part.
1217084-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT/TAB 18-22AWG 0.187
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217084-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female, Male |
| Insulation | Non-Insulated |
| Insulation Diameter [Max] | 3.3 mm |
| Insulation Diameter [Max] | 0.13 in |
| Insulation Diameter [Min] | 2.29 mm |
| Insulation Diameter [Min] | 0.09 in |
| Length - Overall | 15.62 mm |
| Length - Overall | 0.615 in |
| Mounting Type | Free Hanging (In-Line) |
| Tab Length | 5.72 mm |
| Tab Length | 0.225 in |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Stacked |
| Termination | Crimp |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.29 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.23 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.18 | |||
| Tape & Reel (TR) | 3500 | $ 0.13 | ||
| 7000 | $ 0.12 | |||
| 10500 | $ 0.12 | |||
1217084 Series
CONN QC RCPT/TAB 18-22AWG 0.187
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Terminal Type | Insulation | Tab Width | Tab Width | Gender | Termination | Tab Thickness | Tab Thickness | Mounting Type | Contact Material | Length - Overall | Length - Overall | Contact Finish | Tab Length | Tab Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217084-1 | 22 AWG | 17.5 AWG | 3.3 mm | 2.29 mm | 0.13 in | 0.09 in | Stacked | Non-Insulated | 4.75 mm | 0.187 in | Female, Male | Crimp | 0.02 " | 0.51 mm | Free Hanging (In-Line) | Brass | 15.62 mm | 0.615 in | Tin | 5.72 mm | 0.225 in |
Description
General part information
1217084 Series
0.187" (4.75mm) Quick Connect Female and Male 18-22 AWG Crimp Connector Non-Insulated
Documents
Technical documentation and resources
No documents available
