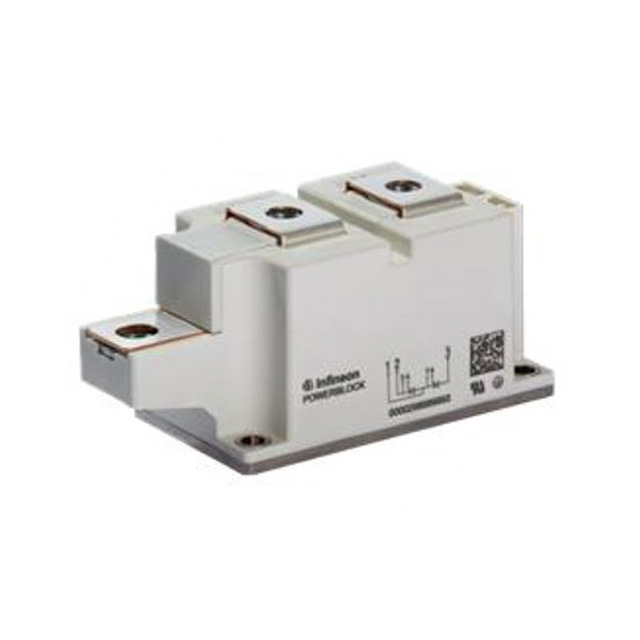

DD340N16SHPSA1
ActiveInfineon Technologies
1600 V, 330 A ECO BLOCK 50 MM RECTIFIER DIODE MODULES
Deep-Dive with AI
Search across all available documentation for this part.
DD340N16SHPSA1
ActiveInfineon Technologies
1600 V, 330 A ECO BLOCK 50 MM RECTIFIER DIODE MODULES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DD340N16SHPSA1 |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 330 A |
| Current - Reverse Leakage @ Vr | 1 mA |
| Diode Configuration | 1 Pair Series Connection |
| Mounting Type | Chassis Mount |
| Operating Temperature - Junction [Max] | 130 °C |
| Operating Temperature - Junction [Min] | -40 °C |
| Package / Case | Module |
| Speed | Standard Recovery >500ns |
| Speed | 200 mA |
| Supplier Device Package | Module |
| Technology | Standard |
| Voltage - Forward (Vf) (Max) @ If | 1.31 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DD340N16 Series
Rectifier Diode 50 mm Eco Block 1600 V, 340 A module for phase control insolder bond technology. If you need additional features or higher performance please also find our Power Block Diode modules for phase control with high reliablepressure contact technology:DD380N16K
