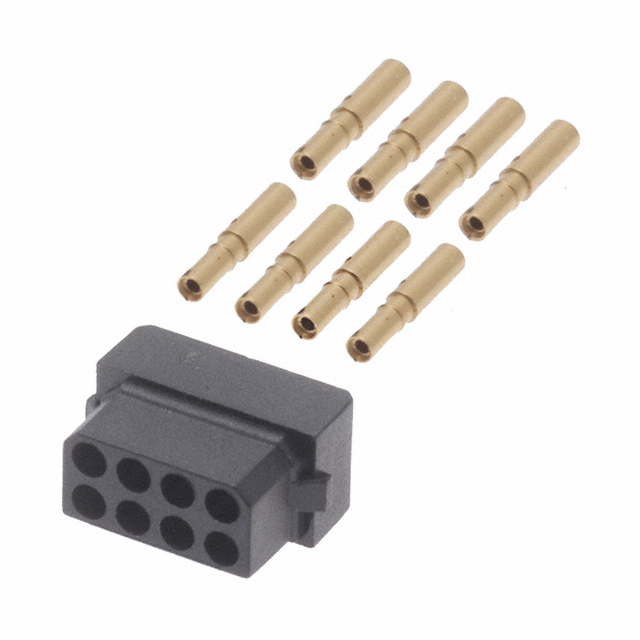

Specification	M80-8890805

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	11.8 µin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Pitch	0.079 in
Row Spacing	0.079 in
Wire Gauge	22 AWG
Wire Type	Discrete

M80-889 Series

Part	Pitch	Cable Termination	Contact Type	Connector Type	Mounting Type	Contact Finish	Fastening Type	Contact Finish Thickness	Number of Positions	Number of Rows	Row Spacing	Wire Type	Color	Wire Gauge
Harwin Inc. M80-8891205	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	12	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8891805	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	18	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8891605	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	16	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8890805	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	8	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8892605	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	26	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8892005	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	20	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8891405	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	14	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8893405	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	34	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8891801	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	18	2	0.079 in	Discrete	Black	22 AWG
Harwin Inc. M80-8892601	0.079 in	Crimp	Female Socket	Receptacle	Free Hanging (In-Line)	Gold	Locking Ramp	11.8 µin	26	2	0.079 in	Discrete	Black	22 AWG
