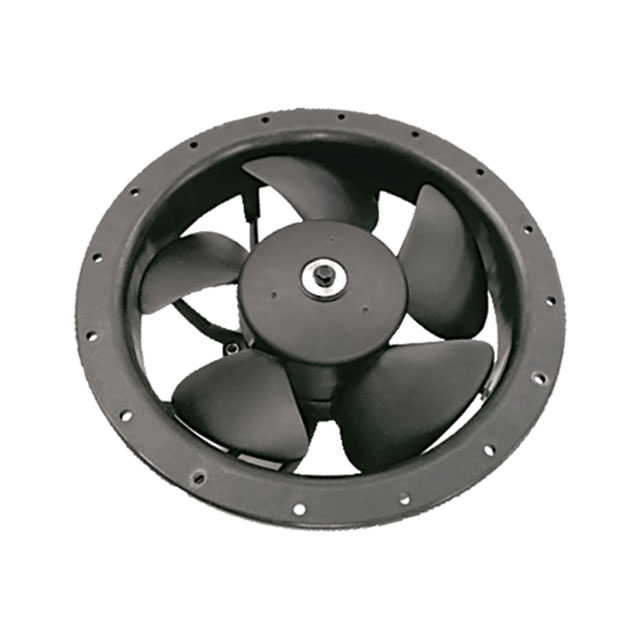

AFL22AUHW-P1

Active

Delta Electronics

222X222X78MM 115 / 230V AC FAN W

Search across all available documentation for this part.

Active

Delta Electronics

222X222X78MM 115 / 230V AC FAN W

Technical Specifications

Parameters and characteristics for this part

Specification	AFL22AUHW-P1

Air Flow	9.07 m³/min
Air Flow	323.9 CFM
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Locked Rotor Protection, Electronic Commutation (EC), Dual Speed, Dual Voltage
Ingress Protection	IP56 - Dust Protected, Water Resistant
Material - Blade	Plastic
Material - Frame	Plastic
Noise	57 dB
Operating Temperature [Max]	55 °C, 131 F
Operating Temperature [Min]	-40 F, -40 °C
Power (Watts)	17 W, 8 W
Size / Dimension	Round
Size / Dimension [diameter]	222 mm
Static Pressure	156.9 Pa
Static Pressure	0.63 in H2O
Termination	3 Wire Leads
Voltage - Rated [Max]	230 VAC
Voltage - Rated [Min]	115 VAC
Voltage Range [Max]	240 VAC
Voltage Range [Min]	100 VAC
Width [y]	85.7 mm

Part	Noise	Bearing Type	Power (Watts)	Termination	Width [y]	Features	Material - Frame	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Size / Dimension [diameter]	Size / Dimension	Ingress Protection	Fan Type	Static Pressure	Static Pressure	Voltage Range [Max]	Voltage Range [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Air Flow	Air Flow
Delta Electronics AFL22AUHW-P1	57 dB	Ball	8 W 17 W	3 Wire Leads	85.7 mm	Dual Speed Dual Voltage Electronic Commutation (EC) Locked Rotor Protection Thermal Overload Protector (TOP)	Plastic	-40 F -40 °C	55 °C 131 F	Plastic	222 mm	Round	IP56 - Dust Protected Water Resistant	Tubeaxial	156.9 Pa	0.63 in H2O	240 VAC	100 VAC	230 VAC	115 VAC	9.07 m³/min	323.9 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 115/230VAC Round - 222mm Dia Ball 323.9 CFM (9.07m³/min) 3 Wire Leads
