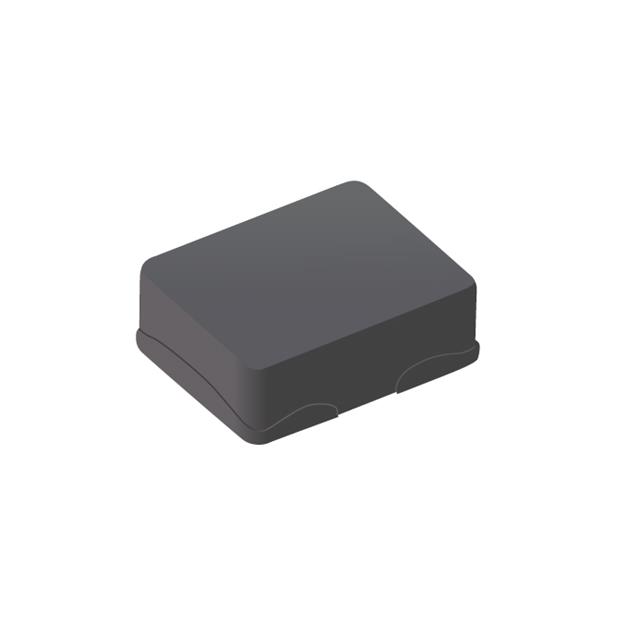

SRP2012TMA-2R2M

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 1MHZ 15Q-FACTOR METAL ALLOY POWDER 2.5A 0.126OHM DCR 0806 AUTOMOTIVE AEC-Q200 T/R

Search across all available documentation for this part.

Active

Bourns Inc.

INDUCTOR POWER SHIELDED WIREWOUND 2.2UH 20% 1MHZ 15Q-FACTOR METAL ALLOY POWDER 2.5A 0.126OHM DCR 0806 AUTOMOTIVE AEC-Q200 T/R

Technical Specifications

Parameters and characteristics for this part

Part	Current - Saturation (Isat)	Shielding	Material - Core	Inductance	Tolerance	Frequency - Self Resonant	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Package / Case	Current Rating (Amps)	Q @ Freq	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Features	Ratings	DC Resistance (DCR)
Bourns Inc. SRP2012TMA-R47M	6 A	Shielded	Metal	470 nH	20 %	102 MHz	1 MHz	1.2 mm	0.047 in	26 mOhm	0806 (2016 Metric)	5.4 A	1 MHz 5	-55 °C	150 °C	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount	Flat Wire	AEC-Q200
Bourns Inc. SRP2012TMA-1R5M	3.1 A	Shielded	Metal	1.5 µH	20 %	52 MHz	1 MHz	1.2 mm	0.047 in		0806 (2016 Metric)	2.9 A	1 MHz 10	-55 °C	150 °C	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount	Flat Wire	AEC-Q200	84 mOhm
Bourns Inc. SRP2012TMA-2R2M	2.7 A	Shielded	Metal	2.2 µH	20 %	40 MHz	1 MHz	1.2 mm	0.047 in	126 mOhm	0806 (2016 Metric)	2.5 A	1 MHz 10	-55 °C	150 °C	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount	Flat Wire	AEC-Q200
Bourns Inc. SRP2012TMA-R33M	7 A	Shielded	Metal	330 nH	20 %	125 MHz	1 MHz	1.2 mm	0.047 in		0806 (2016 Metric)	5.9 A	1 MHz 5	-55 °C	150 °C	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount	Flat Wire	AEC-Q200	18 mOhm
Bourns Inc. SRP2012TMA-R22M	8 A	Shielded	Metal	220 nH	20 %	170 MHz	1 MHz	1.2 mm	0.047 in		0806 (2016 Metric)	7 A	1 MHz 5	-55 °C	150 °C	2 mm	0.063 in	1.6 mm	0.079 in	Surface Mount	Flat Wire	AEC-Q200	13 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.2 µH Shielded Inductor 2.5 A 126mOhm Max 0806 (2016 Metric) Flat Wire
