IQS360EV02-S

Obsolete

Azoteq (Pty) Ltd

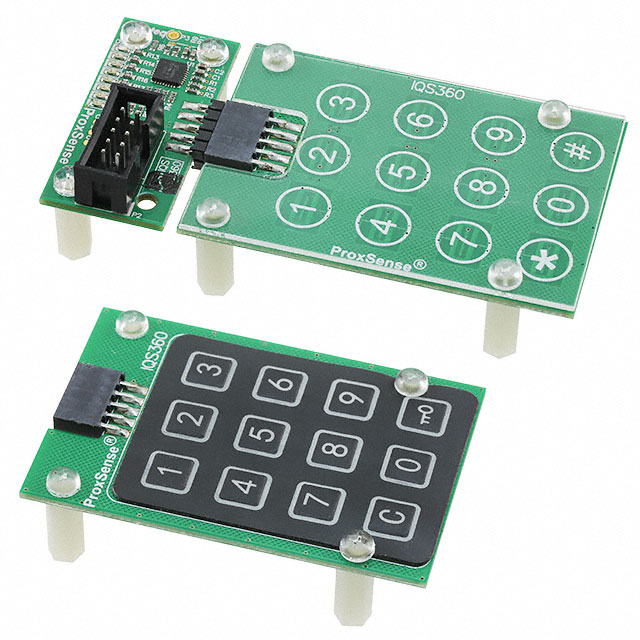

IQS360 EVALUATION KIT 2

Search across all available documentation for this part.

Obsolete

Azoteq (Pty) Ltd

IQS360 EVALUATION KIT 2

Technical Specifications

Parameters and characteristics commom to parts in this series

12 CH. CAPACITIVE TRACKPAD SENSO

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Supply	LED Driver Channels [Max]	Type	Interface	Package / Case	Proximity Detection	Mounting Type	Resolution	Supplier Device Package	Supplied Contents	Embedded	Sensing Range	Sensor Type	Utilized IC / Part
Azoteq (Pty) Ltd IQS360A-0-QFR	85 °C	-20 C	3.6 V	1.8 V	360 µA	8	Buttons, Slider, Wheel	I2C	32-VFQFN Exposed Pad		Surface Mount	11 b	32-QFN (5x5)
Azoteq (Pty) Ltd IQS360EV02-S			3.6 V	1.8 V				I2C						Board(s)		12 Buttons/Keys	Touch, Capacitive	IQS360

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IQS360 - Touch, Capacitive Sensor Evaluation Board

Technical documentation and resources
