8926-05-1-10

Active

3M (TC)

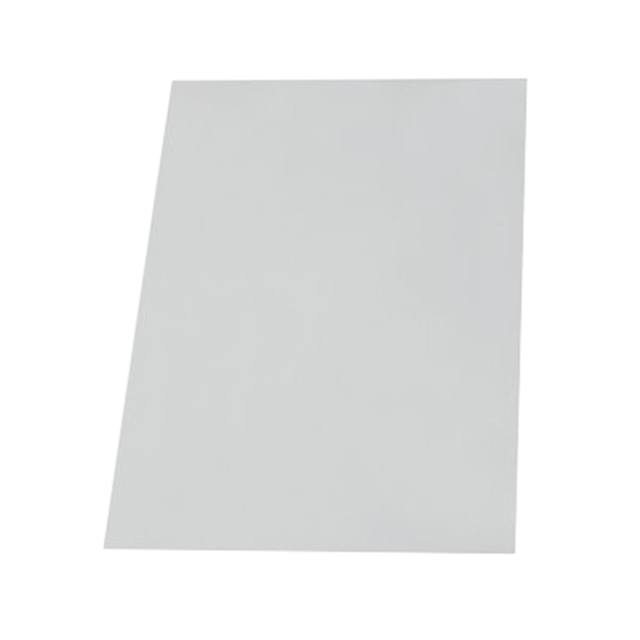

THERM PAD 10M X 25.4MM W/ADH WHT

Deep-Dive with AI

Search across all available documentation for this part.

Documents8926 Series Flyer

8926-05-1-10

Active

3M (TC)

THERM PAD 10M X 25.4MM W/ADH WHT

Deep-Dive with AI

Documents8926 Series Flyer

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8926-05-1-10

Adhesive	Acrylic
Color	White
Outline	25.4 mm, 10 m
Shape	Rectangular
Shelf Life	12 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Thermal Conductivity	1.5 W/m-K
Thickness	0.0197 in
Thickness	0.5 mm
Type	Interface Pad, Roll

8926 Series

Part	Adhesive	Shelf Life	Usage	Type	Thermal Conductivity	Outline [x]	Outline [y]	Shape	Color	Shelf Life Start	Thickness	Thickness	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thickness [custom]	Thickness [custom]	Outline
3M (TC) 8926-02-600MMX40M	Acrylic	12 Months	Thermally Conductive	Interface Pad Roll	1.5 W/m-K	4 m	600 mm	Rectangular	White	Date of Manufacture	0.008 in	0.203 mm	70 °F	21 °C
3M (TC) 8926-025-1-10	Acrylic	12 Months		Interface Pad Roll	1.5 W/m-K			Rectangular	White	Date of Manufacture			70 °F	21 °C	0.254 mm	0.01 in	10 m 25.4 mm
3M (TC) 8926-05-1-10	Acrylic	12 Months		Interface Pad Roll	1.5 W/m-K			Rectangular	White	Date of Manufacture	0.0197 in	0.5 mm	70 °F	21 °C			10 m 25.4 mm
3M (TC) 8926-05-2-10	Acrylic	12 Months		Interface Pad Roll	1.5 W/m-K			Rectangular	White	Date of Manufacture	0.0197 in	0.5 mm	70 °F	21 °C
3M (TC) 8926-02-1-10	Acrylic	12 Months		Interface Pad Roll	1.5 W/m-K			Rectangular	White	Date of Manufacture	0.0079 in	0.2 mm	70 °F	21 °C			10 m 25.4 mm
3M (TC) 8926-02SQ-12(3)	Acrylic	12 Months		Interface Pad Sheet	1.5 W/m-K			Square	White	Date of Manufacture	0.0079 in	0.2 mm	70 °F	21 °C
3M (TC) 8926-05SQ-12(3)	Acrylic	12 Months		Interface Pad Sheet	1.5 W/m-K			Square	White	Date of Manufacture	0.0197 in	0.5 mm	70 °F	21 °C
3M (TC) 8926-02-3-10	Acrylic	12 Months		Interface Pad Roll	1.5 W/m-K	10 m	76.2 mm	Rectangular	White	Date of Manufacture	0.0079 in	0.2 mm	70 °F	21 °C
3M (TC) 8926-025 12" X 12"-5	Acrylic	12 Months		Interface Pad Sheet	1.5 W/m-K			Square	White	Date of Manufacture			70 °F	21 °C
3M (TC) 8926-025-600MMX40M	Acrylic	12 Months		Interface Pad Roll	1.5 W/m-K	599.95 mm	40 m	Rectangular	White	Date of Manufacture			70 °F	21 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.81
		10	$ 66.64
		25	$ 62.48
		50	$ 58.31
		100	$ 55.40

Description

General part information

8926 Series

Thermal Pad White 10.00m x 25.40mm Rectangular Acrylic

Documents

Technical documentation and resources

8926 Series Flyer

Datasheet
