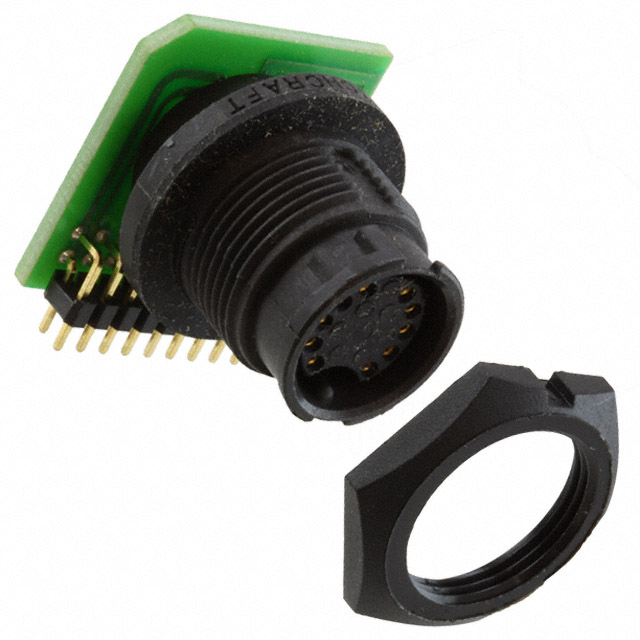

EN3P10FRAPCBN
ActiveSwitchcraft Inc.
CONN RCPT FMALE 10POS SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3P10FRAPCBN
ActiveSwitchcraft Inc.
CONN RCPT FMALE 10POS SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3P10FRAPCBN | EN3P10 Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets, Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 2 A | 2 - 3 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 10 | 10 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Circuit Board, Solder | Circuit Board, Solder |
| Voltage Rating | 250 VAC | 250 VAC |
EN3P10 Series
CONN RCPT FMALE 10P SOLDER CUP
| Part | Applications | Voltage Rating | Orientation | Ingress Protection | Number of Positions | Current Rating (Amps) | Shielding | Color | Fastening Type | Insert Material | Mounting Feature | Primary Material | Material Flammability Rating | Contact Finish - Mating | Contact Material | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3P10F26SX | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 3 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Receptacle, Female Sockets | 65 °C | -40 °C | ||
Switchcraft Inc. EN3P10M26SX | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 3 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Male Pins, Receptacle | 65 °C | -40 °C | ||
Switchcraft Inc. EN3P10M26X | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 3 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Male Pins, Receptacle | 65 °C | -40 °C | ||
Switchcraft Inc. EN3P10FRAPCBW | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 2 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Receptacle, Female Sockets | 65 °C | -40 °C | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P10FRAPCBN | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 2 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Receptacle, Female Sockets | 65 °C | -40 °C | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P10MRAPCBW | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 2 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Male Pins, Receptacle | 65 °C | -40 °C | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P10MRAPCBN | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 2 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Male Pins, Receptacle | 65 °C | -40 °C | Circuit Board, Solder | Panel Mount, Right Angle, Through Hole |
Switchcraft Inc. EN3P10F26X | General Purpose, Instrumentation, Marine, Medical | 250 VAC | Keyed | IP66/IP68 | 10 | 3 A | Unshielded | Black | Bayonet Lock | Elastomer | Bulkhead - Front Side Nut | Plastic | UL94 V-0 | Gold | Copper Alloy | Receptacle, Female Sockets | 65 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 31.52 | |
| 10 | $ 24.34 | |||
| 25 | $ 22.05 | |||
| 50 | $ 20.51 | |||
| 100 | $ 19.11 | |||
| 300 | $ 17.17 | |||
| 500 | $ 16.36 | |||
Description
General part information
EN3P10 Series
10 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder
