EN3P10FRAPCBW

Active

Switchcraft Inc.

CONN RCPT FMALE 10POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

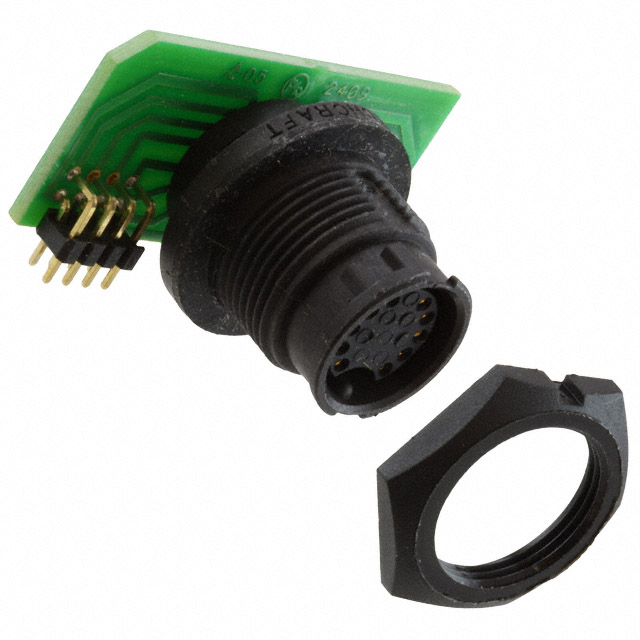

EN3P10FRAPCBW

Active

Switchcraft Inc.

CONN RCPT FMALE 10POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P10FRAPCBW	EN3P10 Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 - 3 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	10	10
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P10 Series

CONN RCPT FMALE 10P SOLDER CUP

Part	Applications	Voltage Rating	Orientation	Ingress Protection	Number of Positions	Current Rating (Amps)	Shielding	Color	Fastening Type	Insert Material	Mounting Feature	Primary Material	Material Flammability Rating	Contact Finish - Mating	Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Mounting Type
Switchcraft Inc. EN3P10F26SX	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	3 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Receptacle, Female Sockets	65 °C	-40 °C
Switchcraft Inc. EN3P10M26SX	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	3 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Male Pins, Receptacle	65 °C	-40 °C
Switchcraft Inc. EN3P10M26X	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	3 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Male Pins, Receptacle	65 °C	-40 °C
Switchcraft Inc. EN3P10FRAPCBW	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	2 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Receptacle, Female Sockets	65 °C	-40 °C	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P10FRAPCBN	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	2 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Receptacle, Female Sockets	65 °C	-40 °C	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P10MRAPCBW	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	2 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Male Pins, Receptacle	65 °C	-40 °C	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P10MRAPCBN	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	2 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Male Pins, Receptacle	65 °C	-40 °C	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P10F26X	General Purpose, Instrumentation, Marine, Medical	250 VAC	Keyed	IP66/IP68	10	3 A	Unshielded	Black	Bayonet Lock	Elastomer	Bulkhead - Front Side Nut	Plastic	UL94 V-0	Gold	Copper Alloy	Receptacle, Female Sockets	65 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.80
		10	$ 22.24
		25	$ 20.16
		50	$ 18.75
		100	$ 17.48
		250	$ 17.43

Description

General part information

EN3P10 Series

10 Position Circular Connector Receptacle, Female Sockets Circuit Board, Solder

Documents

Technical documentation and resources
