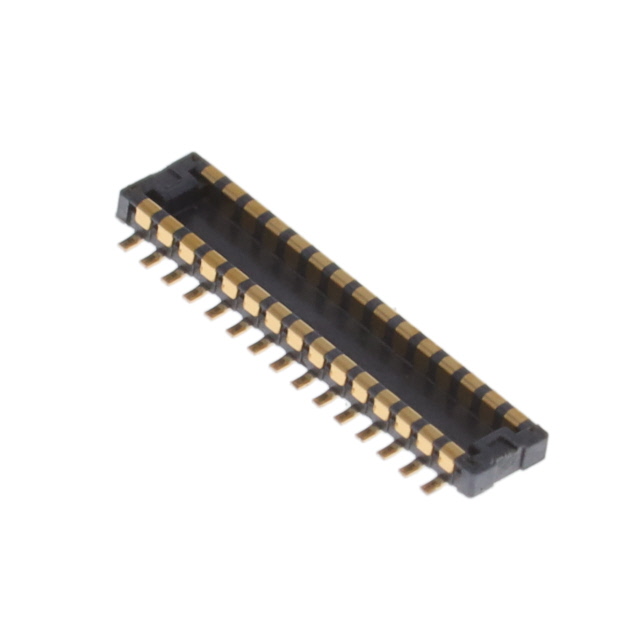

WP7-P026VA1-R8000
NRNDJAE Electronics
CONN PLUG 26POS SMD GOLD
WP7-P026VA1-R8000
NRNDJAE Electronics
CONN PLUG 26POS SMD GOLD
Description
General part information
WP7-P026 Series
26 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7-P026VA1-R8000 |
|---|---|
| Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 µin |
| Features | Solder Retention |
| Height Above Board | 0.02 in |
| Mated Stacking Height | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Pitch | 0.016 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
