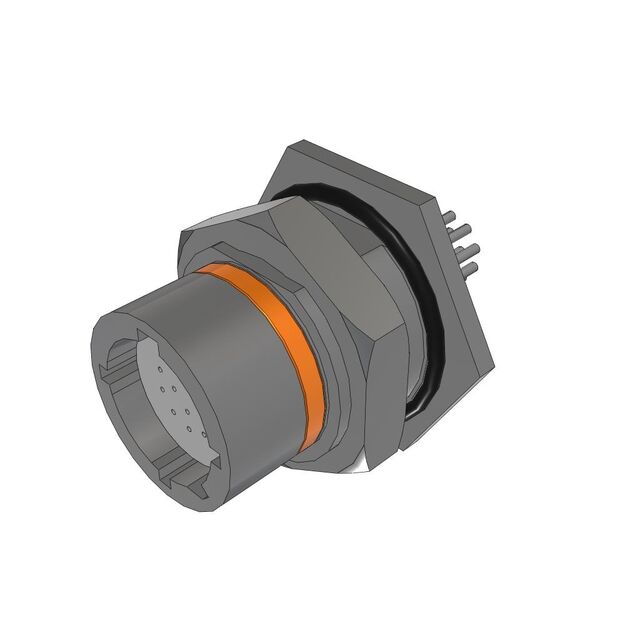

Specification	ACR-16-01-G-00.50-S-BC-P-1

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Panel Mount
1st Connector Number of Positions	14 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation	Keyed
1st Connector Shell Size - Insert	M16
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Type	Individual
Color	Multiple
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Length	1.64 ft
Shielding	Unshielded
Usage	Industrial Environments

ACR-16 Series

Part	1st Connector Mounting Type	1st Connector Type	Shielding	1st Connector Orientation	2nd Connector Type	1st Connector Gender	Cable Type	Ingress Protection IP Rating	Ingress Protection Description	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	Length	Color	1st Connector Number of Positions	Usage	Assembly Configuration
Samtec Inc. ACR-16-01-G-00.50-S-BC-P-1	Panel Mount	Receptacle	Unshielded	Keyed	Wire Leads	Female Sockets	Individual	IP68	Dust Tight Waterproof	All	M16	1.64 ft	Multiple	14 positions	Industrial Environments	Standard
Samtec Inc. ACR-16-01-G-00.20-T-BC-P-1	Panel Mount	Receptacle	Unshielded	Keyed	Wire Leads	Male Pins	Individual	IP68	Dust Tight Waterproof	All	M16	0.66 ft	Multiple	14 positions	Industrial Environments	Standard
