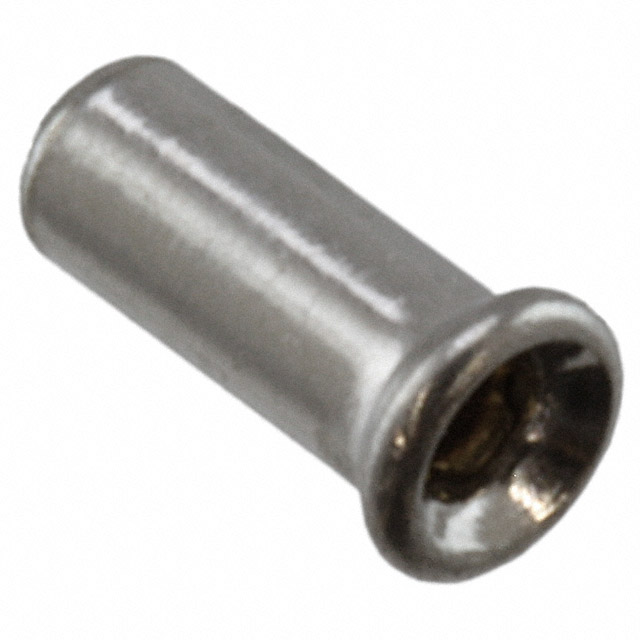

2-5331272-7

2-5331272-7

Active
TE Connectivity AMP Connectors

IC&COMPONENT SOCKETS M-SPRING 02

Find alt
2-5331272-7

2-5331272-7

Active
TE Connectivity AMP Connectors

IC&COMPONENT SOCKETS M-SPRING 02

Find alt

Description

General part information

5331272 Series

3.51 mm [.138 in] Socket Length, 1.32 mm [.052 in] PCB Hole, Closed Bottom, .205 – .258 mm² Wire, 24 – 23 AWG, Cable-to-Board, Pin Sockets

Technical Specifications

Parameters and characteristics for this part

Specification2-5331272-7
Accepts Pin Diameter (Max)0.025 in
Accepts Pin Diameter (Min)0.022 in
Contact FinishGold
Contact Finish Thickness30 µin
Contact MaterialBeryllium Copper
FeaturesClosed Bottom
Flange Diameter0.07 in
Length - Overall0.138 in
Mounting Hole Diameter0.052 in
Operating Temperature (Max)126 °C
Operating Temperature (Min)-65 °C
Socket Depth0.125 in
Tail TypeNo Tail
TerminationSolder
