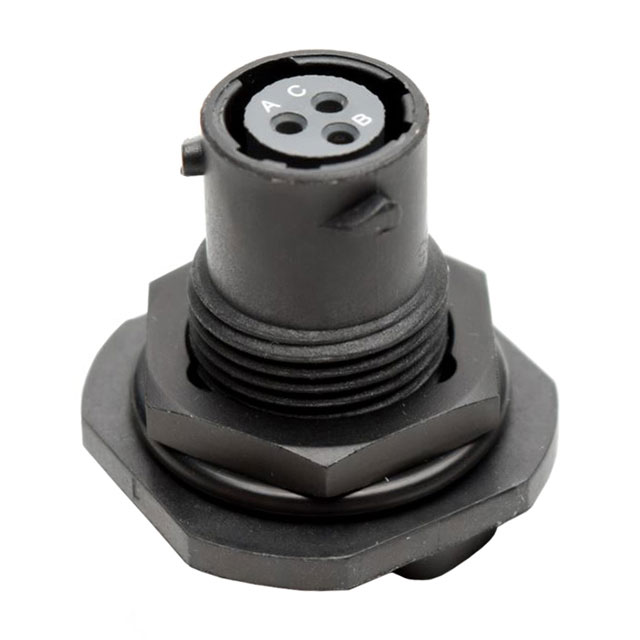

RTS78N3S

Active

McGill Microwave Systems

CONN CIRCULAR SKT 3 POS CRIMP ST JAM NUT 3 TERMINAL 1 PORT

RTS78N3S

Active

McGill Microwave Systems

CONN CIRCULAR SKT 3 POS CRIMP ST JAM NUT 3 TERMINAL 1 PORT

Description Specifications Series Pricing CAD Documents

Description

General part information

RTS78 Series

3 Position Circular Connector Receptacle Housing Panel Mount

Technical Specifications

Parameters and characteristics for this part

Specification	RTS78N3S

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Black
Includes	Nut, O-Ring, Connector, Gasket
Includes Total Count	4 pcs
Ingress Protection Description	Water Resistant, Dust Tight, Waterproof
Ingress Protection IP Rating	IP67, IP69K
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead, Front Side Nut
Mounting Type	Panel Mount
Note	Contacts Not Included
Number of Positions	3
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	N (Normal)
Shell Material	Thermoplastic
Shell Size - Insert Length	8 mm
Shell Size - Insert Width	3 mm
Shielding	Unshielded
Type	For Female Sockets

RTS78 Series

Part	Number of Positions	Insert Material	Termination	Shell Size - Insert Width	Shell Size - Insert Length	Mounting Type	Material Flammability Rating	Ingress Protection IP Rating	Ingress Protection Description	Mounting Feature	Contact Material	Applications	Contact Finish - Mating	Features	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating	Voltage Rating (Type)	Orientation	Current Rating	Shielding	Primary Material	Connector Type	Shell Material	Color	Fastening Type	Includes Total Count	Includes	Contact Size	Contact Shape	Note	Contact Type	Housing Color	Type
McGill Microwave Systems RTS78N4S	4	Chloroprene Rubber CR	Solder Cup	4 mm	8 mm	Panel Mount	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bulkhead Front Side Nut	Copper Alloy	Automation Industrial Instrumentation Marine Telecom Transportation	Gold	Board Guide	-40 °C	105 °C	250 V	DC	N (Normal)	7 A	Unshielded	Plastic	Female Sockets Receptacle	Thermoplastic	Black	Bayonet Lock
McGill Microwave Systems RTS78N4P	4	Chloroprene Rubber CR	Solder Cup	4 mm	8 mm	Panel Mount	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bulkhead Front Side Nut	Copper Alloy	Automation Industrial Instrumentation Marine Telecom Transportation	Gold	Board Guide	-40 °C	105 °C	250 V	DC	N (Normal)	7 A	Unshielded	Plastic	Male Pins Receptacle	Thermoplastic	Black	Bayonet Lock
McGill Microwave Systems RTS78N3S	3	Thermoplastic		3 mm	8 mm	Panel Mount	UL94 V-0	IP67 IP69K	Dust Tight Water Resistant Waterproof	Bulkhead Front Side Nut					-40 °C	125 °C			N (Normal)		Unshielded		Receptacle Housing	Thermoplastic		Bayonet Lock	4 pcs	Connector Gasket Nut O-Ring	20	Circular	Contacts Not Included	Crimp	Black	For Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

RTS78N3S | Datasheet

ecomate-Family-Flyer-2019
