Description
General part information
6GK50050 Series

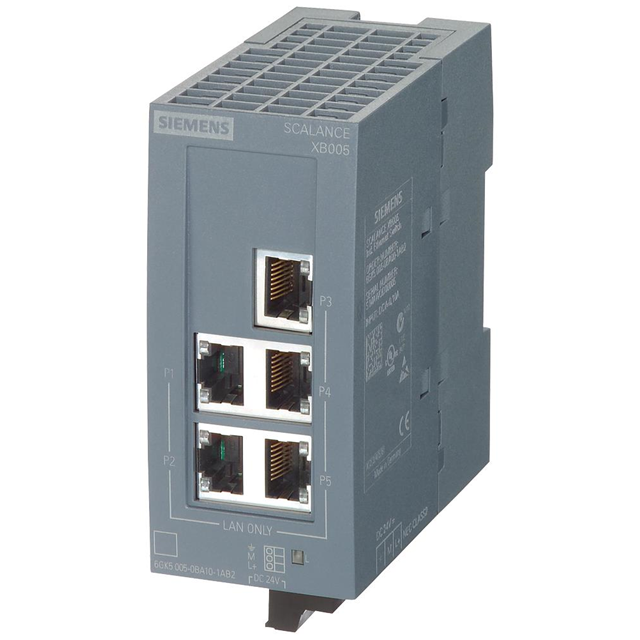

Network Switch - Unmanaged 5 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK50050GA101AB2 |
|---|---|
| Configuration | Fixed |
| Connector Type | RJ45 |
| Copper Ports | 5 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Ingress Protection | IP20 |
| Mounting Type | Wall Mount, DIN Rail |
| Number of Ports | 5 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Type | Switch - Unmanaged |
| Voltage - Input (Maximum) | 28.8 V |
| Voltage - Input (Minimum) | 19.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
