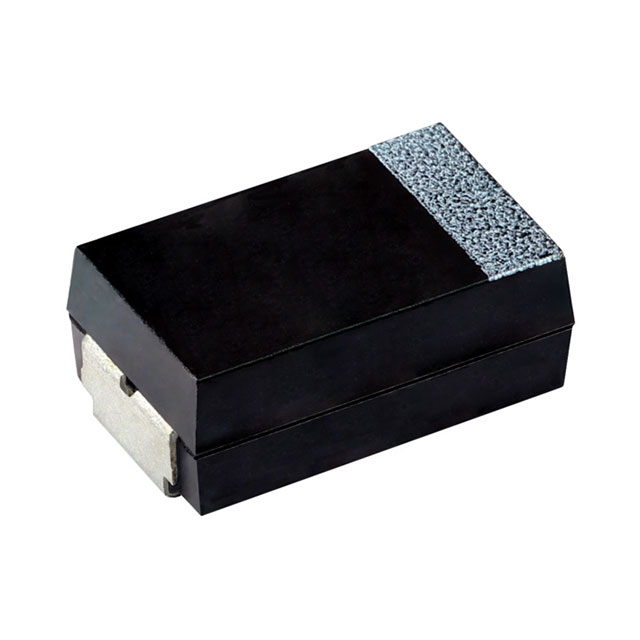

T51D107M010C0040
ActiveVishay Polytech
CAP TANT POLY 100UF 10V 2917
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T51D107M010C0040
ActiveVishay Polytech
CAP TANT POLY 100UF 10V 2917
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T51D107M010C0040 | T51D Series |
|---|---|---|
| Capacitance | 100 µF | 6.8 - 100 µF |
| ESR (Equivalent Series Resistance) | 40 mOhm | 40 - 120 mOhm |
| Features | Automotive | Automotive |
| Height - Seated (Max) [Max] [z] | 0.122 " | 0.122 " |
| Height - Seated (Max) [Max] [z] | 3.1 mm | 3.1 mm |
| Lifetime @ Temp. | 2000 Hrs | 2000 Hrs |
| Manufacturer Size Code | D | D |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 7343 Metric | 7343 Metric |
| Package / Case | 2917 | 2917 |
| Ratings | AEC-Q200 | AEC-Q200 |
| Size / Dimension [x] | 0.287 " | 0.287 " |
| Size / Dimension [x] | 7.3 mm | 7.3 mm |
| Size / Dimension [y] | 4.3 mm | 4.3 mm |
| Size / Dimension [y] | 0.169 " | 0.169 " |
| Tolerance | 20 % | 20 % |
| Type | Molded | Molded |
| Voltage - Rated | 10 V | 10 - 35 VDC |
T51D Series
CAP TANT POLY 15UF 25V 2917
| Part | Tolerance | Type | Voltage - Rated | Capacitance | Mounting Type | ESR (Equivalent Series Resistance) | Package / Case | Package / Case | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Manufacturer Size Code | Lifetime @ Temp. | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay Polytech T51D156M025C0100 | 20 % | Molded | 25 VDC | 15 µF | Surface Mount | 100 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D226M025C0100 | 20 % | Molded | 25 VDC | 22 µF | Surface Mount | 100 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D107M010C0040 | 20 % | Molded | 10 V | 100 µF | Surface Mount | 40 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D106M035C0120 | 20 % | Molded | 35 V | 10 µF | Surface Mount | 120 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D336M020C0100 | 20 % | Molded | 20 V | 33 ÁF | Surface Mount | 100 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D336M025C0100 | 20 % | Molded | 25 VDC | 33 ÁF | Surface Mount | 100 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D106M025C0120 | 20 % | Molded | 25 VDC | 10 µF | Surface Mount | 120 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Vishay Polytech T51D685M035C0120 | 20 % | Molded | 35 V | 6.8 ÁF | Surface Mount | 120 mOhm | 7343 Metric | 2917 | 0.122 " | 3.1 mm | Automotive | 4.3 mm | 0.287 " | 7.3 mm | 0.169 " | AEC-Q200 | D | 2000 Hrs | -55 °C | 125 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 0.93 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.70 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 0.93 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.70 | |||
| Tape & Reel (TR) | 500 | $ 0.56 | ||
| 1000 | $ 0.49 | |||
| 2500 | $ 0.46 | |||
| 5000 | $ 0.44 | |||
| 12500 | $ 0.42 | |||
Description
General part information
T51D Series
100 µF Molded Tantalum Polymer Capacitor 10 V 2917 (7343 Metric) 40mOhm @ 100kHz
