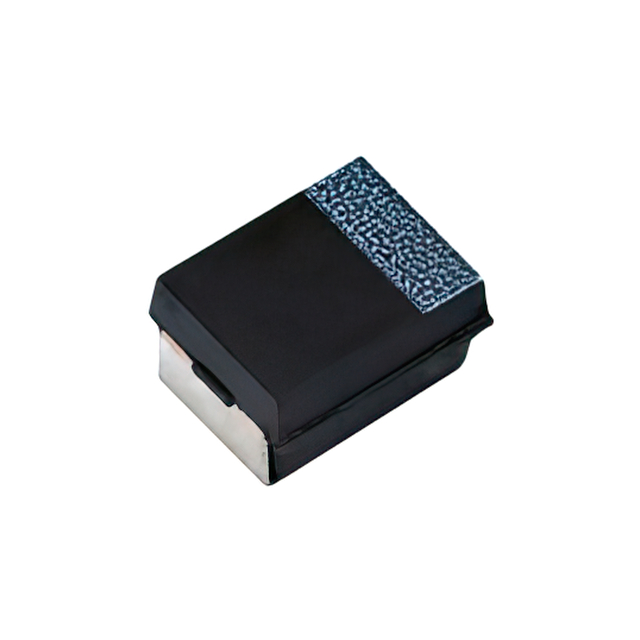

T51D106M025C0120

Active

Vishay Polytech

CAP TANT POLY 10UF 25V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T51D106M025C0120

Active

Vishay Polytech

CAP TANT POLY 10UF 25V 2917

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	T51D106M025C0120	T51D Series

Capacitance	10 µF	6.8 - 100 µF
ESR (Equivalent Series Resistance)	120 mOhm	40 - 120 mOhm
Features	Automotive	Automotive
Height - Seated (Max) [Max] [z]	0.122 "	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm	3.1 mm
Lifetime @ Temp.	2000 Hrs	2000 Hrs
Manufacturer Size Code	D	D
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	7343 Metric	7343 Metric
Package / Case	2917	2917
Ratings	AEC-Q200	AEC-Q200
Size / Dimension [x]	0.287 "	0.287 "
Size / Dimension [x]	7.3 mm	7.3 mm
Size / Dimension [y]	4.3 mm	4.3 mm
Size / Dimension [y]	0.169 "	0.169 "
Tolerance	20 %	20 %
Type	Molded	Molded
Voltage - Rated	25 VDC	10 - 35 VDC

T51D Series

CAP TANT POLY 15UF 25V 2917

Part	Tolerance	Type	Voltage - Rated	Capacitance	Mounting Type	ESR (Equivalent Series Resistance)	Package / Case	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Ratings	Manufacturer Size Code	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]
Vishay Polytech T51D156M025C0100	20 %	Molded	25 VDC	15 µF	Surface Mount	100 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D226M025C0100	20 %	Molded	25 VDC	22 µF	Surface Mount	100 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D107M010C0040	20 %	Molded	10 V	100 µF	Surface Mount	40 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D106M035C0120	20 %	Molded	35 V	10 µF	Surface Mount	120 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D336M020C0100	20 %	Molded	20 V	33 ÁF	Surface Mount	100 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D336M025C0100	20 %	Molded	25 VDC	33 ÁF	Surface Mount	100 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D106M025C0120	20 %	Molded	25 VDC	10 µF	Surface Mount	120 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C
Vishay Polytech T51D685M035C0120	20 %	Molded	35 V	6.8 ÁF	Surface Mount	120 mOhm	7343 Metric	2917	0.122 "	3.1 mm	Automotive	4.3 mm	0.287 "	7.3 mm	0.169 "	AEC-Q200	D	2000 Hrs	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.61
		10	$ 1.21
		50	$ 1.10
		100	$ 0.90
	Digi-Reel®	1	$ 1.61
		10	$ 1.21
		50	$ 1.10
		100	$ 0.90
	Tape & Reel (TR)	500	$ 0.53

Description

General part information

T51D Series

10 µF Molded Tantalum Polymer Capacitor 25 V 2917 (7343 Metric) 120mOhm @ 100kHz
