Connectors, Interconnects
770020-1
ActiveTE Connectivity Raychem Cable Protection

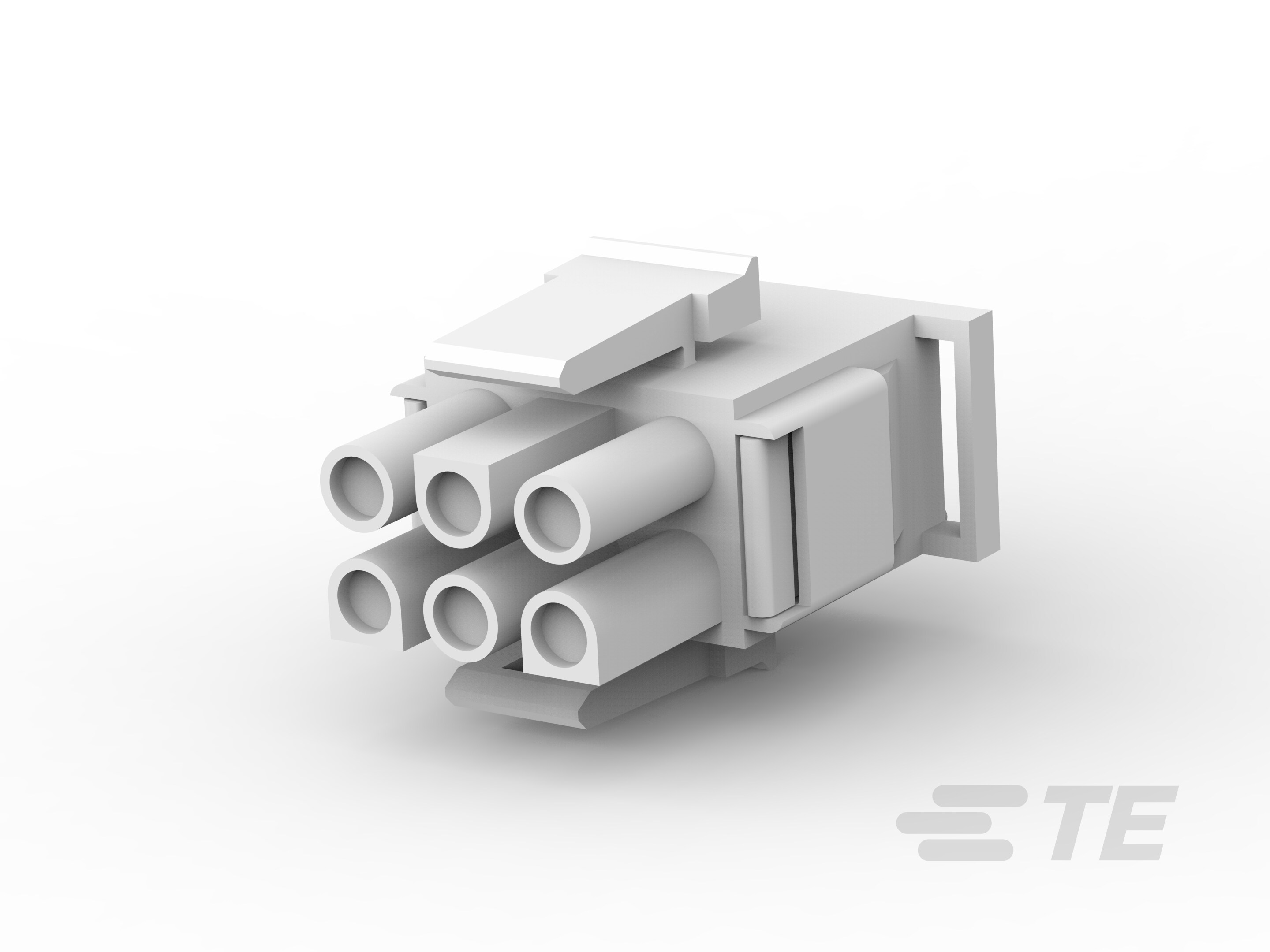

CONN PLUG HSG 6POS 2PC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 770020-1 |
|---|---|
| Color | White |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Male or Female |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA), Nylon |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing | 6.35 mm |
| Row Spacing | 0.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.74 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.26 | |||
| 100 | $ 1.19 | |||
| 250 | $ 1.11 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 0.99 | |||
| 2500 | $ 0.92 | |||
Description
General part information
770020 Series
6 Rectangular Connectors - Housings Plug White
