FFC3B07-12-T
ActiveGCT

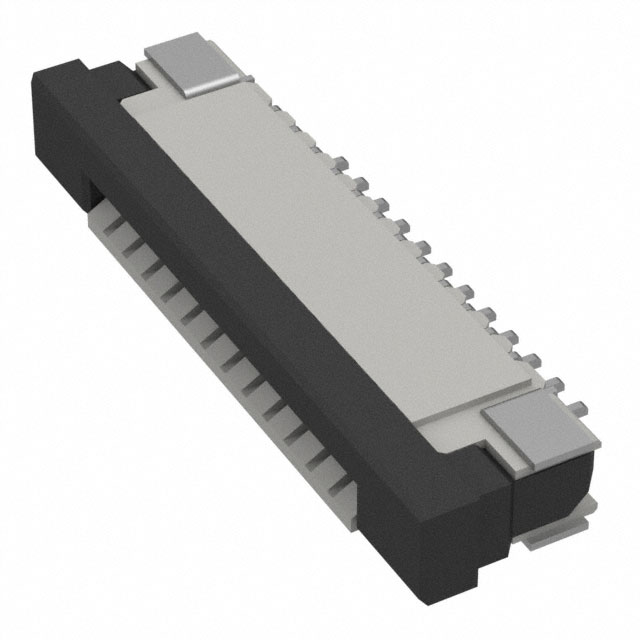

CONN FFC FPC BOTTOM 12POS 1MM RA
Deep-Dive with AI
Search across all available documentation for this part.
FFC3B07-12-T
ActiveGCT
CONN FFC FPC BOTTOM 12POS 1MM RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFC3B07-12-T |
|---|---|
| Actuator Color | Black |
| Actuator Material | Thermoplastic |
| Cable End Type | Tapered |
| Connector/Contact Type | Contacts, Bottom |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 400 mA |
| Features | Solder Retention |
| FFC, FCB Thickness | 0.3 mm |
| Flat Flex Type | FPC, FFC |
| Height Above Board | 0.098 in |
| Height Above Board | 2.5 mm |
| Housing Color | Natural |
| Housing Material | Thermoplastic |
| Locking Feature | Slide Lock |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 20 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 12 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.039 in |
| Pitch [x] | 1 mm |
| Termination | Solder |
| Voltage Rating | 50 V |
FFC3B07 Series
| Part | FFC, FCB Thickness | Features | Actuator Material | Mounting Type | Height Above Board | Height Above Board | Pitch [x] | Pitch [x] | Locking Feature | Housing Material | Contact Material | Actuator Color | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Connector/Contact Type | Number of Positions | Material Flammability Rating | Termination | Contact Finish | Flat Flex Type | Cable End Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GCT | 0.3 mm | Solder Retention | Thermoplastic | Surface Mount Right Angle | 0.098 in | 2.5 mm | 0.039 in | 1 mm | Slide Lock | Thermoplastic | Phosphor Bronze | Black | Natural | -25 °C | 85 °C | 50 V | 20 | Contacts Bottom | 12 | UL94 V-0 | Solder | Tin | FFC FPC | Tapered | 400 mA |
GCT | 0.3 mm | Solder Retention | Thermoplastic | Surface Mount Right Angle | 0.098 in | 2.5 mm | 0.039 in | 1 mm | Slide Lock | Thermoplastic | Phosphor Bronze | Black | Natural | -25 °C | 85 °C | 50 V | 20 | Contacts Bottom | 18 | UL94 V-0 | Solder | Tin | FFC FPC | Tapered | 400 mA |
GCT | 0.3 mm | Solder Retention | Thermoplastic | Surface Mount Right Angle | 0.098 in | 2.5 mm | 0.039 in | 1 mm | Slide Lock | Thermoplastic | Phosphor Bronze | Black | Natural | -25 °C | 85 °C | 50 V | 20 | Contacts Bottom | 8 | UL94 V-0 | Solder | Tin | FFC FPC | Tapered | 400 mA |
GCT | 0.3 mm | Solder Retention | Thermoplastic | Surface Mount Right Angle | 0.098 in | 2.5 mm | 0.039 in | 1 mm | Slide Lock | Thermoplastic | Phosphor Bronze | Black | Natural | -25 °C | 85 °C | 50 V | 20 | Contacts Bottom | 4 | UL94 V-0 | Solder | Tin | FFC FPC | Tapered | 400 mA |
GCT | 0.3 mm | Solder Retention | Thermoplastic | Surface Mount Right Angle | 0.098 in | 2.5 mm | 0.039 in | 1 mm | Slide Lock | Thermoplastic | Phosphor Bronze | Black | Natural | -25 °C | 85 °C | 50 V | 20 | Contacts Bottom | 20 | UL94 V-0 | Solder | Tin | FFC FPC | Tapered | 400 mA |
GCT | 0.3 mm | Solder Retention | Thermoplastic | Surface Mount Right Angle | 0.098 in | 2.5 mm | 0.039 in | 1 mm | Slide Lock | Thermoplastic | Phosphor Bronze | Black | Natural | -25 °C | 85 °C | 50 V | 20 | Contacts Bottom | 40 | UL94 V-0 | Solder | Tin | FFC FPC | Tapered | 400 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.39 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.32 | |||
| 100 | $ 0.30 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.23 | |||
| Tape & Reel (TR) | 2000 | $ 0.21 | ||
| 4000 | $ 0.20 | |||
| 6000 | $ 0.19 | |||
| 10000 | $ 0.18 | |||
| 14000 | $ 0.18 | |||
| 20000 | $ 0.17 | |||
| 50000 | $ 0.16 | |||
Description
General part information
FFC3B07 Series
12 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
