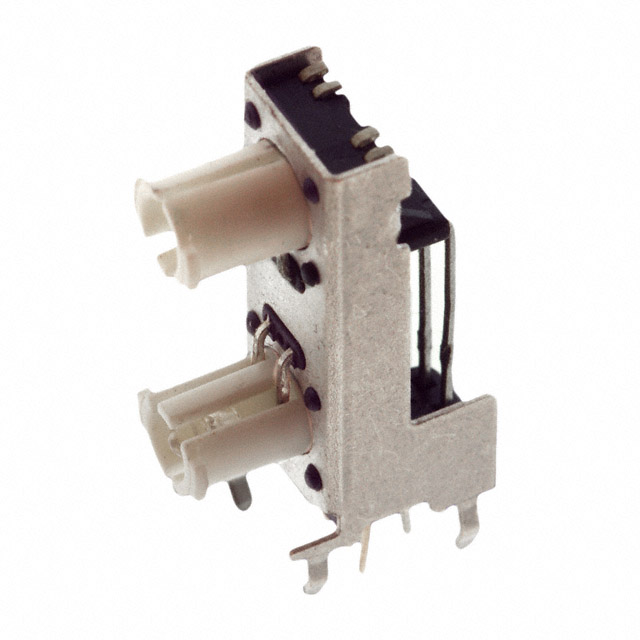

Specification	TL3253BRNBRNF160Q

Actuator Length (Right Angle)	8.55 mm
Actuator Orientation	Side Actuated
Actuator Type	Dual
Circuit	SPST x 2
Color	Red
Contact Rating (Current)	0.05 A
Illumination	Illuminated
Illumination Type	LED
Illumination Voltage (Nominal)	1.95 VDC
Mechanical Life (Cycles)	500000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Force	160 gf
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Length	8.4 mm
Outline Width	10.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

TL3253 Series

Part	Switch Travel	Mechanical Life (Cycles)	Actuator Type	Outline Length	Outline Width	Switch Function	Color	Illumination Type	Illumination Voltage (Nominal)	Actuator Length (Right Angle)	Mounting Type	Illumination	Actuator Orientation	Operating Temperature (Max)	Operating Temperature (Min)	Operating Force	Circuit	Contact Rating (Current)	Termination Style	Illumination Voltage (Nominal)
E-Switch TL3253BRNBRNF160Q	0.25 mm	500000 Cycles	Dual	8.4 mm	10.5 mm	Off-Mom	Red	LED	1.95 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	70 °C	-20 °C	160 gf	SPST x 2	0.05 A	PC Pin
E-Switch TL3253ARAAYAF160Q	0.25 mm	500000 Cycles	Dual	8.4 mm	10.5 mm	Off-Mom	Red Yellow	LED	1.95 VDC 2 VDC	6.6 mm	Right Angle Through Hole	Illuminated	Side Actuated	70 °C	-20 °C	160 gf	SPST x 2	0.05 A	PC Pin	1.95 2 VDC
E-Switch TL3253BGABGAF160Q	0.25 mm	500000 Cycles	Dual	8.4 mm	10.5 mm	Off-Mom	Green	LED	2.1 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	70 °C	-20 °C	160 gf	SPST x 2	0.05 A	PC Pin
E-Switch TL3253BBABGAF160Q			Dual	8.4 mm	10.5 mm	Off-Mom	Blue Green	LED	2.1 VDC 3.3 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	70 °C	-20 °C	160 gf	SPST x 2	0.05 A	PC Pin	2.1 3.3 VDC
E-Switch TL3253BBNBBNF160Q	0.25 mm	500000 Cycles	Dual	8.4 mm	10.5 mm	Off-Mom	Blue	LED	3.3 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	70 °C	-20 °C	160 gf	SPST x 2	0.05 A	PC Pin
E-Switch TL3253BWBBBBF160Q	0.25 mm	500000 Cycles	Dual	8.4 mm	10.5 mm	Off-Mom	Blue White	LED	3.3 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	70 °C	-20 °C	160 gf	SPST x 2	0.05 A	PC Pin
