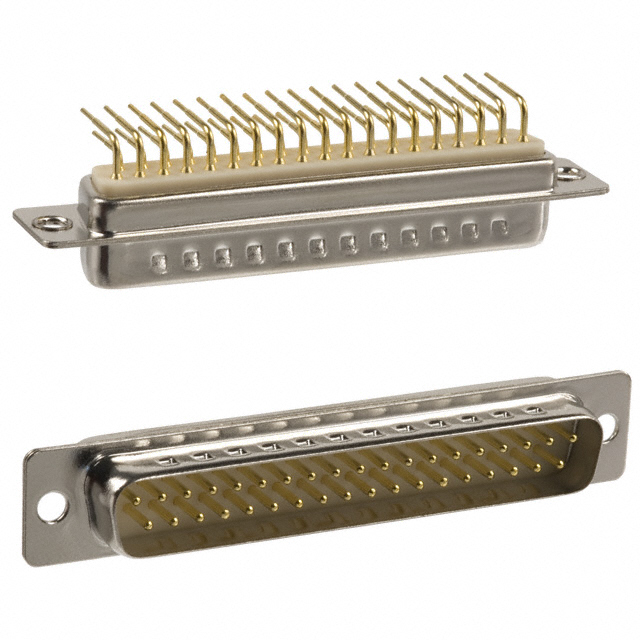

173-E37-113R001
ActiveMH Connectors
D SUB CONNECTOR, DB37, PLUG, 173-E M SERIES, 37 CONTACTS, DC, THROUGH HOLE
Deep-Dive with AI
Search across all available documentation for this part.
173-E37-113R001
ActiveMH Connectors
D SUB CONNECTOR, DB37, PLUG, 173-E M SERIES, 37 CONTACTS, DC, THROUGH HOLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 173-E37-113R001 |
|---|---|
| Backset Spacing | 0.283 in |
| Backset Spacing | 7.2 mm |
| Color | White |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA6T), Nylon 6T |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 (DC, C) |
| Termination | Solder |
173-E37 Series
| Part | Dielectric Material | Contact Finish | Contact Type | Current Rating (Amps) | Contact Finish Thickness | Backset Spacing | Backset Spacing | Termination | Material Flammability Rating | Connector Type | Mounting Type | Color | Shell Size, Connector Layout | Connector Style | Flange Feature | Number of Rows | Number of Positions | Shell Material, Finish | Features | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Housing/Shell (Unthreaded) | 2 | 37 | Steel Yellow Chromate Plated | ||||
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Male Pins Plug | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Housing/Shell (Unthreaded) | 2 | 37 | Nickel Plated Steel | Grounding Indents | Brass | ||
MH Connectors | Polybutylene Terephthalate (PBT) | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Housing/Shell (Unthreaded) | 2 | 37 | |||||
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Mating Side Standard Screws (4-40) | 2 | 37 | Steel Yellow Chromate Plated | Mounting Brackets | |||
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Receptacle Female Sockets | Through Hole Right Angle | White | 4 (DC C) | D-Sub | Housing/Shell (4-40) | 2 | 37 | Nickel Plated Steel | Board Lock Mounting Brackets | Copper | -55 °C | 125 °C |
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Receptacle Female Sockets | Through Hole Right Angle | White | 4 (DC C) | D-Sub | Female Screwlock (4-40) Mating Side | 2 | 37 | Nickel Plated Steel | Mounting Brackets | Copper | -55 °C | 125 °C |
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Male Pins Plug | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Female Screwlock (4-40) Mating Side | 2 | 37 | Nickel Plated Steel | Grounding Indents Mounting Brackets | Brass | ||
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Male Pins Plug | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Housing/Shell (Unthreaded) | 2 | 37 | Steel Yellow Chromate Plated | Brass | |||
MH Connectors | Polyamide (PA6T) Nylon 6T | Gold | Signal | 5 A | Flash | 0.283 in | 7.2 mm | Solder | UL94 V-0 | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | White | 4 (DC C) | D-Sub | Female Screwlock (4-40) Mating Side | 2 | 37 | Steel Yellow Chromate Plated | Mounting Brackets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
173-E37 Series
37 Position D-Sub Plug, Male Pins Connector
