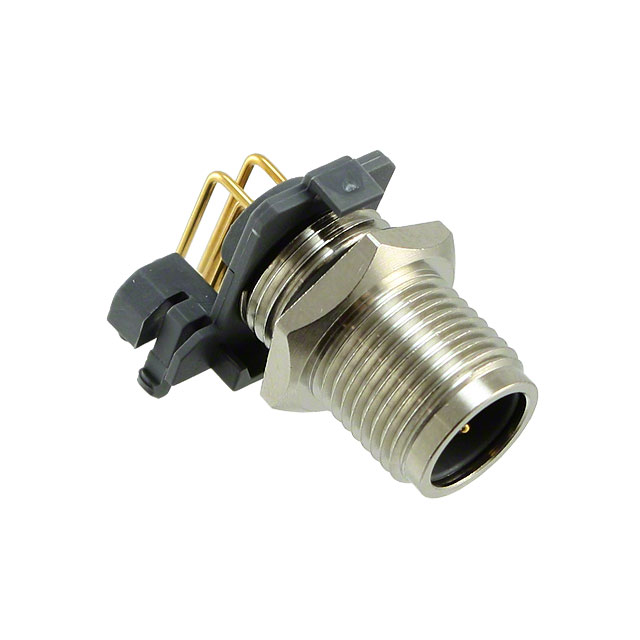

43-01211

Active

Amphenol CONEC

SENSOR CONN, M12, R/A PLUG, 5POS, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01211

Active

Amphenol CONEC

SENSOR CONN, M12, R/A PLUG, 5POS, PANEL ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01211

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

43-0121 Series

Part	Contact Finish - Mating	Current Rating (Amps)	Primary Material	Ingress Protection	Material Flammability Rating	Shell Size - Insert	Shielding	Mounting Type	Color	Contact Material	Shell Material	Shell Finish	Orientation	Mounting Feature	Insert Material	Number of Positions	Features	Voltage Rating	Termination	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol CONEC 43-01213	Gold	4 A	Metal	IP67 - Dust Tight Waterproof	UL94	M12-4	Shielded	Panel Mount Through Hole	Silver	Copper Zinc	Copper Zinc	Nickel	B	Bulkhead	Polyamide (PA) Nylon Glass Filled	4	Board Guide Board Lock	250 VDC	Solder	Female Sockets Plug	-30 ░C	85 °C
Amphenol CONEC 43-01218	Gold	4 A	Metal	IP67 - Dust Tight Waterproof	UL94	M12-4	Shielded	Panel Mount Through Hole	Silver	Copper Zinc	Copper Zinc	Nickel	B	Bulkhead	Polyamide (PA66) Nylon 6/6	4		250 VDC	Solder	Male Pins Receptacle	-30 ░C	85 °C
Amphenol CONEC 43-01214	Gold	4 A	Metal	IP67 - Dust Tight Waterproof	UL94	M12-4	Shielded	Panel Mount Through Hole	Silver	Copper Zinc	Copper Zinc	Nickel	B	Bulkhead	Polyamide (PA66) Nylon 6/6	4	Board Guide Board Lock	250 VDC	Solder	Male Pins Receptacle	-30 ░C	85 °C
Amphenol CONEC 43-01219	Gold	4 A	Metal	IP67 - Dust Tight Waterproof	UL94	M12-4	Shielded	Panel Mount Through Hole	Silver	Copper Zinc	Copper Zinc	Nickel	B	Bulkhead - Front Side Nut	Polyamide (PA66) Nylon 6/6	4		250 VDC	Solder	Male Pins Receptacle	-30 ░C	85 °C
Amphenol CONEC 43-01215	Gold	4 A	Metal	IP67 - Dust Tight Waterproof	UL94	M12-4	Shielded	Panel Mount Through Hole	Silver	Copper Zinc	Copper Zinc	Nickel	B	Bulkhead - Front Side Nut	Polyamide (PA66) Nylon 6/6	4	Board Guide Board Lock	250 VDC	Solder	Male Pins Receptacle	-30 ░C	85 °C
Amphenol CONEC 43-01211	Gold	4 A	Metal	IP67 - Dust Tight Waterproof	UL94	M12-5	Shielded	Panel Mount Right Angle Through Hole	Silver	Copper Zinc	Copper Zinc	Nickel	A	Bulkhead - Front Side Nut	Polyamide (PA66) Nylon 6/6		Board Guide Board Lock	60 VDC	Solder	Male Pins Receptacle	-30 ░C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.55
		10	$ 10.39
		25	$ 9.79
		50	$ 9.54
		100	$ 9.29
		250	$ 8.28
		500	$ 7.78
		1000	$ 6.88
Newark	Each	1	$ 7.99
		10	$ 7.34
		25	$ 6.80
		50	$ 6.30
		100	$ 5.90
		250	$ 5.54
		500	$ 5.22

Description

General part information

43-0121 Series

5 Position Circular Connector Receptacle, Male Pins Solder
