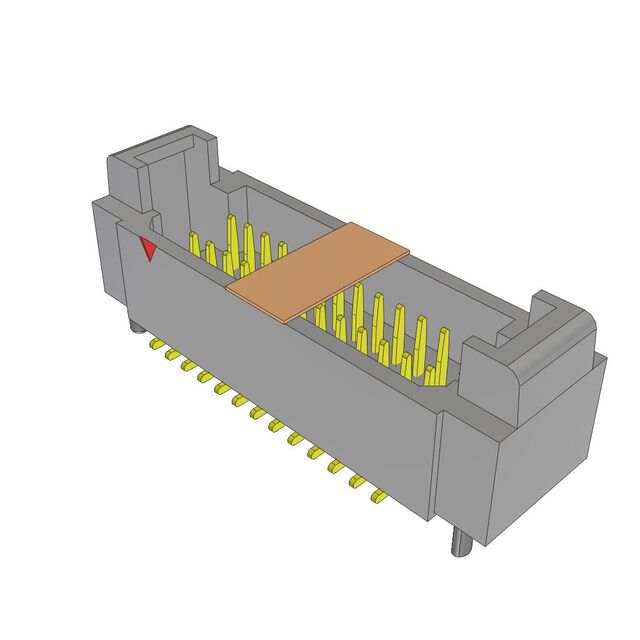

T1M-13-GF-DV-K

Active

Samtec Inc.

DISCRETE WIRE TERMINAL STRIP, 1.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T1M-13-GF-DV-K

Active

Samtec Inc.

DISCRETE WIRE TERMINAL STRIP, 1.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-13-GF-DV-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Features	Pick and Place
Insulation Color	Natural
Insulation Height	6.8 mm
Insulation Height	0.268 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-06 Series

Headers & Wire Housings Discrete Wire Terminal Strip, 1.00 mm Pitch

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions Loaded	Insulation Material	Style	Number of Rows	Insulation Color	Contact Type	Shrouding	Contact Material	Number of Positions	Connector Type	Contact Shape	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Termination	Fastening Type	Insulation Height	Insulation Height	Mounting Type	Material Flammability Rating	Contact Finish - Mating	Voltage Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
Samtec Inc. T1M-06-GF-DV	3 µin	0.076 µm	3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	2	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	12	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Gold	Solder	Locking Ramp	6.8 mm	0.268 in	Surface Mount	UL94 V-0	Gold	250 VAC 353 VDC	0.076 µm	3 µin
Samtec Inc. T1M-13-GF-DV-K	3 µin	0.076 µm	3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	2	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	26	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Gold	Solder	Locking Ramp	6.8 mm	0.268 in	Surface Mount	UL94 V-0	Gold	250 VAC 353 VDC	0.076 µm	3 µin	Pick and Place
Samtec Inc. T1M-13-GF-S-RA-TR	3 µin	0.076 µm	3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	1	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	13	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Gold	Solder	Locking Ramp	3.2 mm	0.126 in	Surface Mount Right Angle	UL94 V-0	Gold	250 VAC 353 VDC	0.076 µm	3 µin
Samtec Inc. T1M-13-T-S-RA-TR			3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	1	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	13	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Tin	Solder	Locking Ramp	3.2 mm	0.126 in	Surface Mount Right Angle	UL94 V-0		250 VAC 353 VDC
Samtec Inc. T1M-06-S-S-V-TR			3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	1	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	6	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Tin	Solder	Locking Ramp	4.25 mm	0.167 in	Surface Mount	UL94 V-0	Gold	250 VAC 353 VDC
Samtec Inc. T1M-06-GF-DH	3 µin	0.076 µm	3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	2	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	12	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Gold	Solder	Locking Ramp	6.25 mm	0.246 in	Surface Mount Right Angle	UL94 V-0	Gold	250 VAC 353 VDC	0.076 µm	3 µin
Samtec Inc. T1M-13-GF-S-V-K-TR	3 µin	0.076 µm	3.3 A	All	Liquid Crystal Polymer (LCP)	Board to Cable/Wire	1	Natural	Male Pin	Shrouded - 4 Wall	Phosphor Bronze	13	Header	Square	0.039 in	1 mm	-55 °C	85 °C	Gold	Solder	Locking Ramp	4.25 mm	0.167 in	Surface Mount	UL94 V-0	Gold	250 VAC 353 VDC	0.076 µm	3 µin	Pick and Place
