132245-10

Active

Amphenol RF

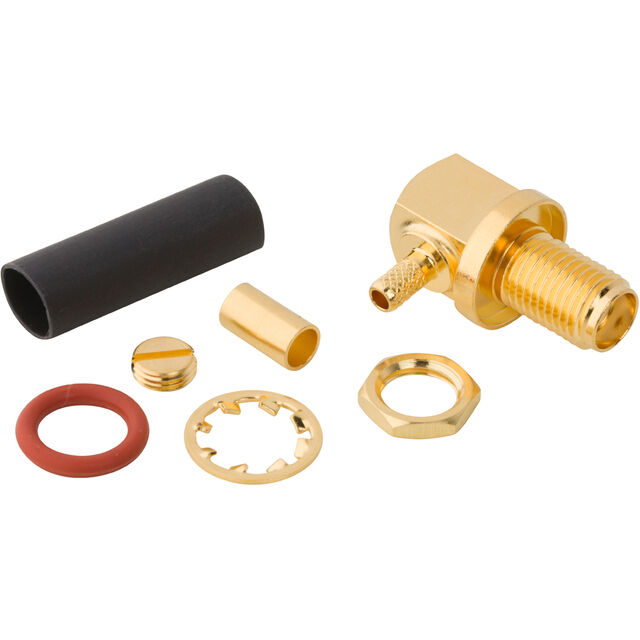

SMA RIGHT ANGLE CRIMP JACK FOR R

Search across all available documentation for this part.

Active

Amphenol RF

SMA RIGHT ANGLE CRIMP JACK FOR R

Technical Specifications

Parameters and characteristics for this part

Specification	132245-10

Body Finish	Gold
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	375 V

Part	Impedance	Cable Group	Center Contact Material	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Connector Type	Housing Color	Dielectric Material	Mounting Feature	Shield Termination	Body Material	Ingress Protection	Number of Ports	Body Finish	Mating Cycles	Connector Style	Mounting Type	Voltage Rating	Contact Termination
Amphenol RF 132245-10	50 Ohms	188 188A 316 LMR-100 M17/119-RG174 RG-174	Beryllium Copper	12.4 GHz	-65 ░C	165 °C	Gold	Female Socket Jack	Gold	Polytetrafluoroethylene (PTFE)	Bulkhead - Front Side Nut	Crimp	Brass	IP67 - Dust Tight Waterproof	1	Gold	500	SMA	Free Hanging (In-Line) Right Angle	375 V	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
