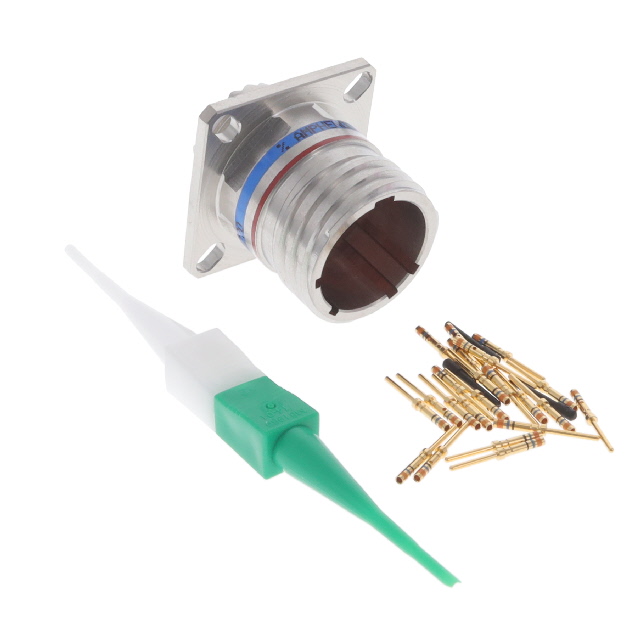

D38999/20KC35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 22POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/20KC35PN

Active

Amphenol Aerospace Operations

CONN RCPT MALE 22POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/20KC35PN

Applications	Aviation, Aerospace, Marine, Military
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Firewall Usage
Grade	Military
Ingress Protection	Environment Resistant
Mounting Feature	Flange
Number of Positions	22 positions
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Material	Stainless Steel
Shell Size - Insert [Max]	35
Shell Size - Insert [Min]	13
Shell Size, MIL	C
Shielding	Shielded
Termination	Crimp

D38999/20KC Series

Part	Applications	Primary Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Color	Shell Material	Qualification	Connector Type	Shell Size, MIL	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Material	Ingress Protection	Contact Finish - Mating	Grade	Orientation	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Number of Positions	Mounting Feature	Shell Size - Insert	Shell Finish	Housing Color	Type	Contact Shape	Contact Size	Contact Type	Note	Contact Size
Amphenol Aerospace Operations D38999/20KC35PN	Aerospace Aviation Marine Military	Metal	35	13	Silver	Stainless Steel	MIL-DTL-38999 Series III	Male Pins Receptacle	C	Firewall Usage	-65 ░C	200 °C	5 A	Copper Alloy	Environment Resistant	Gold	Military	N	Crimp	1.27 µm	50 µin	Shielded	22 positions	Flange
Amphenol Aerospace Operations D38999/20KC4HN	Aviation Marine Military	Metal				Stainless Steel	MIL-DTL-38999 Series III	Male Pins Receptacle	C		-65 ░C	200 °C		Copper Alloy	Environment Resistant	Gold	Military	N	Crimp	2.54 çm	100 çin	Shielded	4	Flange	13-4	Passivated
Amphenol Aerospace Operations D38999/20KC35HN	Aviation Marine Military	Metal	35	13		Stainless Steel	MIL-DTL-38999 Series III	Male Pins Receptacle	C		-65 ░C	200 °C		Copper Alloy	Environment Resistant	Gold	Military	N	Crimp	2.54 çm	100 çin	Shielded	22 positions	Flange		Passivated
Amphenol Aerospace Operations D38999/20KC35HN-LC			35	13		Stainless Steel	MIL-DTL-38999 Series III	Receptacle Housing	C	Firewall Usage	-65 ░C	200 °C			Environment Resistant		Military	N				Shielded	22 positions	Flange		Passivated	Silver	For Male Pins	Circular	22D	Crimp	Contacts Not Included
Amphenol Aerospace Operations D38999/20KC98BN						Stainless Steel	MIL-DTL-38999 Series III	Receptacle Housing	C	Firewall Usage	-65 ░C	200 °C			Environment Resistant		Military	N				Shielded	10	Flange		Passivated	Silver	For Female Sockets	Circular		Crimp	Contacts Not Included	20
Amphenol Aerospace Operations D38999/20KC4PNLC						Stainless Steel	MIL-DTL-38999 Series III	Receptacle Housing	C	Firewall Usage	-65 ░C	200 °C			Environment Resistant		Military	N				Shielded	4	Flange	13-4	Passivated	Silver	For Male Pins	Circular		Crimp	Contacts Not Included	16
Amphenol Aerospace Operations D38999/20KC98HNLC						Stainless Steel	MIL-DTL-38999 Series III	Receptacle Housing	C	Firewall Usage	-65 ░C	200 °C			Environment Resistant		Military	N				Shielded	10	Flange		Passivated	Silver	For Male Pins	Circular		Crimp	Contacts Not Included	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 182.28
		10	$ 142.50
		25	$ 129.95
		50	$ 121.49

Description

General part information

D38999/20KC Series

22 Position Circular Connector Receptacle, Male Pins Crimp
