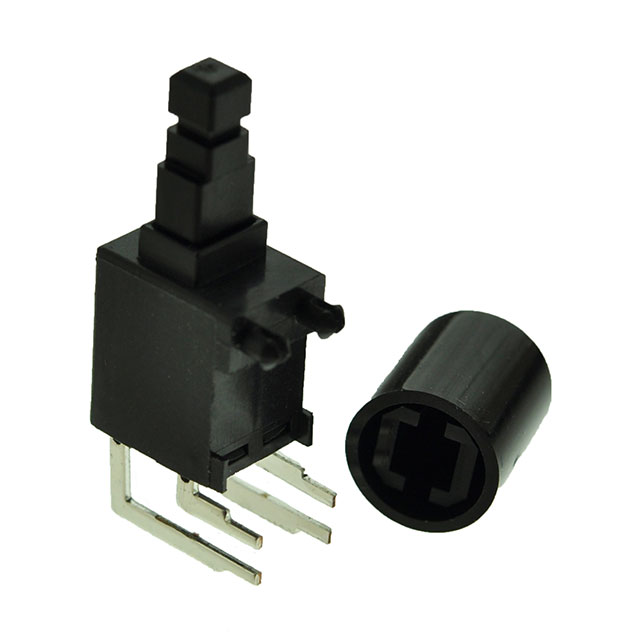

PB400EEQR1BLK - PB400xxQR1BLK_View2

PB400EEQR1BLK

Active
E-Switch

PUSHBUTTON SWITCH, PB400 SERIES, DPST, OFF-ON, ROUND, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN
PB400EEQR1BLK - PB400xxQR1BLK_View2

PB400EEQR1BLK

Active
E-Switch

PUSHBUTTON SWITCH, PB400 SERIES, DPST, OFF-ON, ROUND, BLACK

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Technical Specifications

Parameters and characteristics for this part

SpecificationPB400EEQR1BLK
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitDPST
Color - Actuator/CapBlack
Current Rating (Amps)3 A
Electrical Life6000 Cycles
Mounting TypeThrough Hole, Right Angle
Operating Temperature [Max]60 °C
Operating Temperature [Min]-5 °C
Switch FunctionOff-On
Termination StylePC Pin
TypeStandard
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 2.12
10$ 1.89
25$ 1.79
50$ 1.70
100$ 1.63
324$ 1.56
648$ 1.46
1296$ 1.39
NewarkEach 1$ 2.54
10$ 2.23
25$ 2.11
50$ 2.03
100$ 1.96

Description

General part information

PB400 Series

Pushbutton Switch DPST Standard Through Hole, Right Angle

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
