ABV1212619
ObsoletePanasonic Electric Works

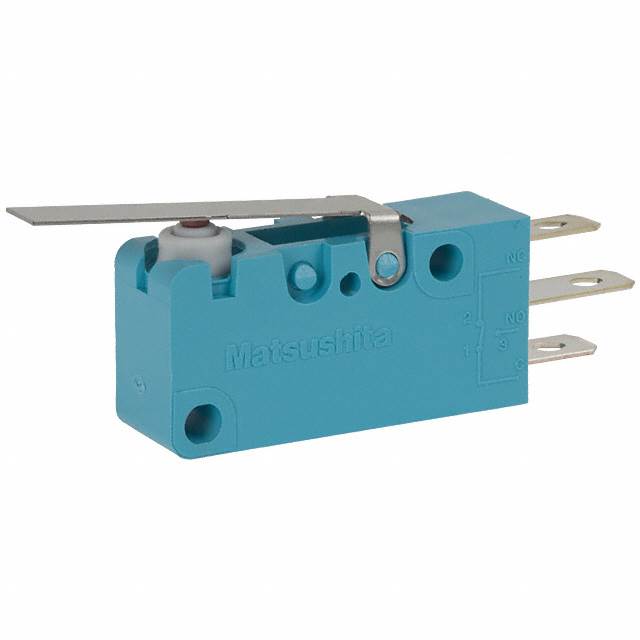

SWITCH SNAP ACTION SPDT 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
ABV1212619
ObsoletePanasonic Electric Works
SWITCH SNAP ACTION SPDT 3A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ABV1212619 | ABV121 Series |
|---|---|---|
| Actuator Type | Lever, Straight | Roller, Lever, Round (Pin Plunger), Lever, Straight, Simulated Roller |
| Circuit | SPDT | SPDT |
| Current Rating (Amps) | 3 A | 1 - 5 A |
| Differential Travel | 0.047 in | 0.016 - 0.047 in |
| Differential Travel | 1.2 mm | 0.4 - 1.2 mm |
| Electrical Life | 100000 Cycles | 100000 Cycles |
| Ingress Protection | IP50 | IP50 |
| Mechanical Life | 5000000 Cycles | 5000000 Cycles |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Force | 180 gf | 100 - 320 gf |
| Operating Position | 15.3 mm | 14.7 - 20.7 mm |
| Operating Position | 0.602 " | 0.579 - 0.815 in |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Overtravel | 1.2 mm | 0.76 - 1.2 mm |
| Overtravel | 0.047 " | 0.03 - 0.047 in |
| Pretravel | 3.2 mm | 3.2 mm |
| Pretravel | 0.125 in | 0.125 - 1.6 mm |
| Pretravel | - | 0.063 in |
| Release Force | 20 gf | 13 - 60 gf |
| Switch Function | On-Mom | On-Mom |
| Termination Style | Solder, Quick Connect | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in | 0.187 - 4.7 mm |
| Voltage Rating - AC | 250 V | 250 V |
ABV121 Series
SWITCH SNAP ACTION SPDT 3A 250V
| Part | Operating Position | Operating Position | Actuator Type | Electrical Life | Differential Travel | Differential Travel | Switch Function | Overtravel | Overtravel | Mounting Type | Termination Style | Termination Style | Pretravel | Pretravel | Release Force | Voltage Rating - AC | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Mechanical Life | Current Rating (Amps) | Circuit | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panasonic Electric Works ABV1215619 | 20.7 mm | 0.815 in | Lever, Roller | 100000 Cycles | 0.5 mm | 0.02 in | On-Mom | 0.76 mm | 0.03 in | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.063 in | 1.6 mm | 60 gf | 250 V | 320 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | |
Panasonic Electric Works ABV1210519 | 14.7 mm | 0.579 in | Round (Pin Plunger) | 100000 Cycles | 0.4 mm | 0.016 " | On-Mom | 0.76 mm | 0.03 in | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.063 in | 1.6 mm | 250 V | 200 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | ||
Panasonic Electric Works ABV1212603 | 15.3 mm | 0.602 " | Lever, Straight | 100000 Cycles | 1.2 mm | 0.047 in | On-Mom | 1.2 mm | 0.047 " | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.125 in | 20 gf | 250 V | 180 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 5 A | SPDT | 3.2 mm | |
Panasonic Electric Works ABV1212513 | 15.3 mm | 0.602 " | Lever, Straight | 100000 Cycles | 1.2 mm | 0.047 in | On-Mom | 1.2 mm | 0.047 " | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.125 in | 13 gf | 250 V | 120 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | 3.2 mm | |
Panasonic Electric Works ABV1210613 | 14.7 mm | 0.579 in | Round (Pin Plunger) | 100000 Cycles | 0.4 mm | 0.016 " | On-Mom | 0.76 mm | 0.03 in | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.063 in | 1.6 mm | 60 gf | 250 V | 300 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | |
Panasonic Electric Works ABV1216613 | 20.7 mm | 0.815 in | Lever, Roller | 100000 Cycles | 1.2 mm | 0.047 in | On-Mom | 1.2 mm | 0.047 " | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.125 in | 20 gf | 250 V | 180 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | 3.2 mm | |
Panasonic Electric Works ABV1212503 | 15.3 mm | 0.602 " | Lever, Straight | 100000 Cycles | 1.2 mm | 0.047 in | On-Mom | 1.2 mm | 0.047 " | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.125 in | 13 gf | 250 V | 120 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 5 A | SPDT | 3.2 mm | |
Panasonic Electric Works ABV1210618 | 14.7 mm | 0.579 in | Round (Pin Plunger) | 100000 Cycles | 0.4 mm | 0.016 " | On-Mom | 0.76 mm | 0.03 in | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.063 in | 1.6 mm | 60 gf | 250 V | 300 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | |
Panasonic Electric Works ABV1216619 | 20.7 mm | 0.815 in | Lever, Roller | 100000 Cycles | 1.2 mm | 0.047 in | On-Mom | 1.2 mm | 0.047 " | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.125 in | 20 gf | 250 V | 180 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT | 3.2 mm | |
Panasonic Electric Works ABV1210513 | 14.7 mm | 0.579 in | Round (Pin Plunger) | 100000 Cycles | 0.4 mm | 0.016 " | On-Mom | 0.76 mm | 0.03 in | Chassis Mount | Quick Connect, Solder | 0.187 in, 4.7 mm | 0.063 in | 1.6 mm | 250 V | 200 gf | 85 °C | -40 °C | IP50 | 5000000 Cycles | 3 A | SPDT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ABV121 Series
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
