SSQ-123-01-L-D

Active

Samtec Inc.

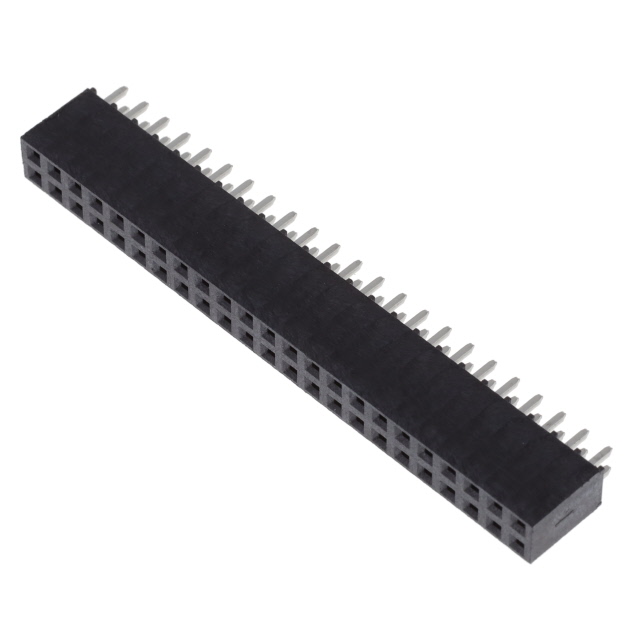

CONN RCPT 46POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Tiger Buy™ Socket Strip with Square Tails, 0.100" Pitch +1

SSQ-123-01-L-D

Active

Samtec Inc.

CONN RCPT 46POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet Tiger Buy™ Socket Strip with Square Tails, 0.100" Pitch +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSQ-123-01-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.104 in
Contact Length - Post	2.64 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	46
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	465 VAC, 655 VDC

SSQ-123 Series

Part	Insulation Height	Insulation Height	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Fastening Type	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Shape	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Voltage Rating	Contact Finish - Post	Connector Type	Contact Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SSQ-123-04-G-T	0.335 "	8.51 mm	UL94 V-0	-55 °C	125 °C	Solder	Push-Pull	Through Hole	0.1 in	2.54 mm	3	Square	Gold	0.51 µm	20 µin	Board to Board Cable	Phosphor Bronze	0.584 "	14.83 mm	Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Gold	Receptacle	Forked	Black	2.54 mm	0.1 in	All	3 µin	0.076 µm	69
Samtec Inc. SSQ-123-02-G-S-RA			UL94 V-0	-55 °C	125 °C	Solder	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	1	Square	Gold	0.51 µm	20 µin	Board to Board Cable	Phosphor Bronze			Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Gold	Receptacle	Forked	Black			All	3 µin	0.076 µm	23	2.54 mm	0.1 in	0.095 in	2.41 mm
Samtec Inc. SSQ-123-03-S-D	0.335 "	8.51 mm	UL94 V-0	-55 °C	125 °C	Solder	Push-Pull	Through Hole	0.1 in	2.54 mm	2	Square	Gold	0.76 Ám	30 Áin	Board to Board Cable	Phosphor Bronze			Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black	2.54 mm	0.1 in	All			46	10 mm	0.394 in
Samtec Inc. SSQ-123-04-S-S	0.335 "	8.51 mm	UL94 V-0	-55 °C	125 °C	Solder	Push-Pull	Through Hole	0.1 in	2.54 mm	1	Square	Gold	0.76 Ám	30 Áin	Board to Board Cable	Phosphor Bronze	0.584 "	14.83 mm	Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black			All			23
Samtec Inc. SSQ-123-04-T-D	0.335 "	8.51 mm	UL94 V-0	-55 °C	105 ░C	Solder	Push-Pull	Through Hole	0.1 in	2.54 mm	2	Square				Board to Board Cable	Phosphor Bronze	0.584 "	14.83 mm	Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black	2.54 mm	0.1 in	All			46
Samtec Inc. SSQ-123-02-T-T-RA	0.295 in	7.5 mm	UL94 V-0	-55 °C	105 ░C	Solder	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	3	Square				Board to Board Cable	Phosphor Bronze			Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black	2.54 mm	0.1 in	All			69	2.54 mm	0.1 in
Samtec Inc. SSQ-123-02-S-S-RA			UL94 V-0	-55 °C	125 °C	Solder	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	1	Square	Gold	0.76 Ám	30 Áin	Board to Board Cable	Phosphor Bronze			Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black			All			23	2.54 mm	0.1 in	0.095 in	2.41 mm
Samtec Inc. SSQ-123-01-L-D	0.335 "	8.51 mm	UL94 V-0	-55 °C	125 °C	Solder	Push-Pull	Through Hole	0.1 in	2.54 mm	2	Square	Gold	0.25 çm	10 çin	Board to Board Cable	Phosphor Bronze			Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black	2.54 mm	0.1 in	All			46	2.64 mm	0.104 in
Samtec Inc. SSQ-123-02-T-D	0.335 "	8.51 mm	UL94 V-0	-55 °C	105 ░C	Solder	Push-Pull	Through Hole	0.1 in	2.54 mm	2	Square				Board to Board Cable	Phosphor Bronze			Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black	2.54 mm	0.1 in	All			46	4.93 mm	0.194 in
Samtec Inc. SSQ-123-03-T-S-RA			UL94 V-0	-55 °C	105 ░C	Solder	Push-Pull	Through Hole Right Angle	0.1 in	2.54 mm	1	Square				Board to Board Cable	Phosphor Bronze	0.3 "	7.62 mm	Liquid Crystal Polymer (LCP)	465 VAC 655 VDC	Tin	Receptacle	Forked	Black			All			23			0.095 in	2.41 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.54
		25	$ 5.92
		50	$ 5.50
		100	$ 5.24
		500	$ 4.89
