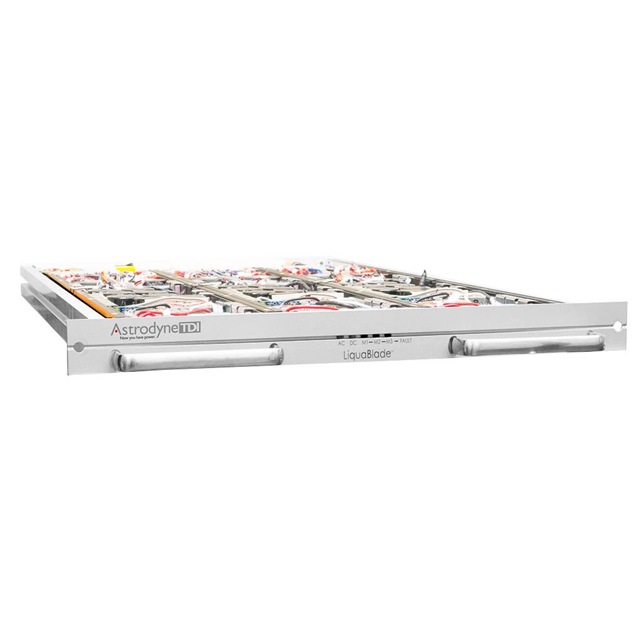

T100104286-1-LF

Obsolete

Astrodyne TDI

AC/DC CONVERTER 180V 16500W

Search across all available documentation for this part.

Obsolete

Astrodyne TDI

AC/DC CONVERTER 180V 16500W

Technical Specifications

Parameters and characteristics for this part

AC/DC CONVERTER 180V 16500W

Part	Features	Voltage - Output 1	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Efficiency	Current - Output 1	Standard Number	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Isolation	Voltage - Input [Max]	Voltage - Input [Min]	Type	Applications
Astrodyne TDI T100104286-1-LF	Adjustable Output	180 V	Rack Mount	50 °C	5 °C	CE, UL	91 %	120 A	60950-1	16500 W	1.72 in	758 mm	29.87 in	19 in	482 mm	43 mm	1	4.242 kV	480 VAC	380 VAC	Enclosed	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 180V 380 ~ 480 VAC (3 Phase) Input
