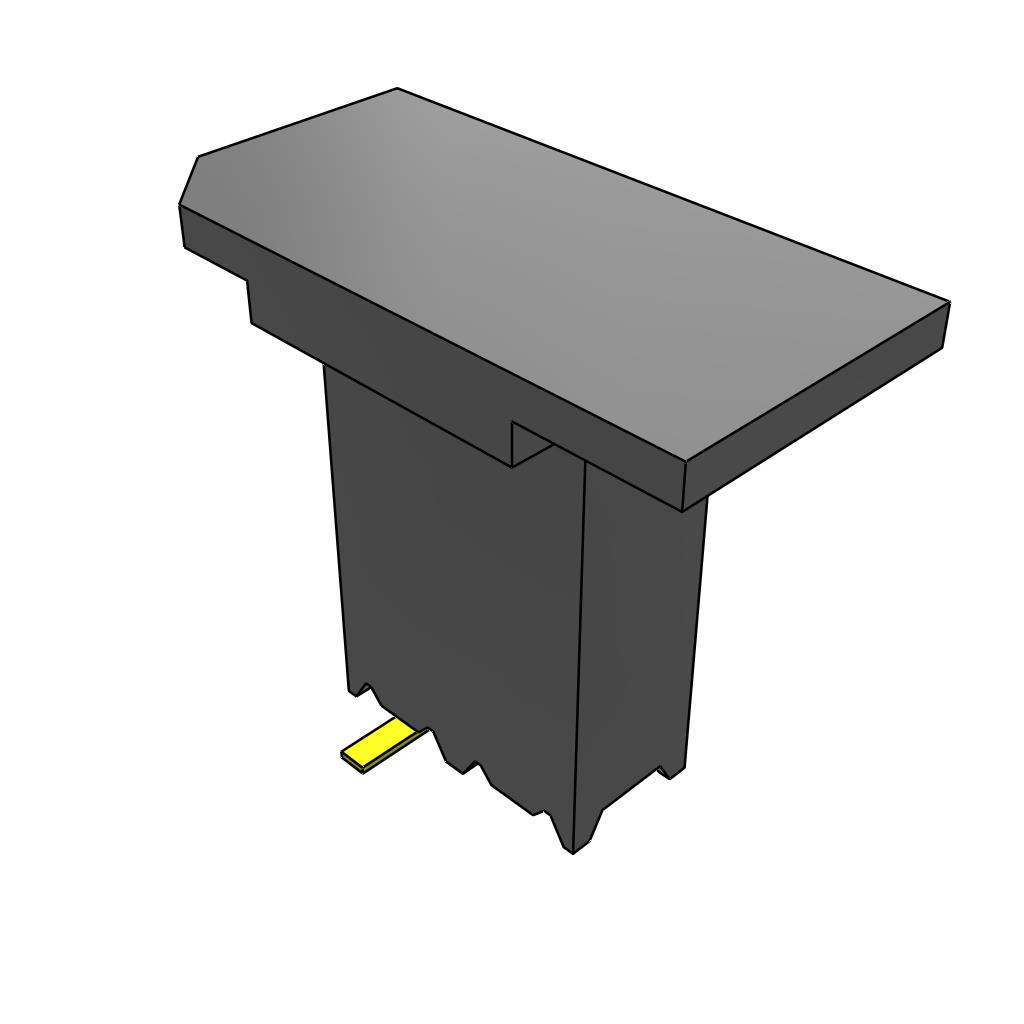

SSM-102-S-SV-P-TR

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SSM Datasheet +1

SSM-102-S-SV-P-TR

Active

Samtec Inc.

CONN RCPT 2POS 0.1 GOLD SMD

Deep-Dive with AI

DocumentsDatasheet SSM Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSM-102-S-SV-P-TR

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Features	Pick and Place
Insulation Color	Black
Insulation Height	7.37 mm
Insulation Height	0.29 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	572 VDC, 405 VAC

SSM-102 Series

Part	Number of Rows	Style	Voltage Rating	Contact Type	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Insulation Color	Contact Material	Current Rating (Amps)	Fastening Type	Mounting Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded	Termination	Number of Positions	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Features
Samtec Inc. SSM-101-L-SV	1	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	1	Pass Through Receptacle	10 çin	0.25 çm	Square
Samtec Inc. SSM-102-L-DV-LC	2	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	4	Pass Through Receptacle	10 çin	0.25 çm	Square	2.54 mm	0.1 in
Samtec Inc. SSM-102-S-DV-LC-TR	2	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	4	Pass Through Receptacle	30 Áin	0.76 Ám	Square	2.54 mm	0.1 in
Samtec Inc. SSM-102-F-DV	2	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	4	Pass Through Receptacle	3 µin	0.076 µm	Square	2.54 mm	0.1 in
Samtec Inc. SSM-102-F-DV-TR	2	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	4	Pass Through Receptacle	3 µin	0.076 µm	Square	2.54 mm	0.1 in
Samtec Inc. SSM-102-LM-SH	1	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	3.18 mm	0.125 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount Right Angle	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	2	Receptacle	10 çin	0.25 çm	Square
Samtec Inc. SSM-102-L-DV-TR	2	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	4	Pass Through Receptacle	10 çin	0.25 çm	Square	2.54 mm	0.1 in
Samtec Inc. SSM-102-S-SV-P-TR	1	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	2	Pass Through Receptacle	30 Áin	0.76 Ám	Square			Pick and Place
Samtec Inc. SSM-102-L-DV-BE-LC-P-TR	2	Board to Board Cable	405 VAC 572 VDC	Female Socket	Gold	-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	4	Receptacle Bottom Entry	10 çin	0.25 çm	Square	2.54 mm	0.1 in	Board Lock Pick and Place
Samtec Inc. SSM-102-T-SV	1	Board to Board Cable	405 VAC 572 VDC	Female Socket		-55 °C	125 °C	7.37 mm	0.29 in	Black	Phosphor Bronze	5.2 A	Push-Pull	Surface Mount	Tin	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	All	Solder	2	Pass Through Receptacle			Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.98
		50	$ 1.63
		100	$ 1.35
	Tape & Reel (TR)	400	$ 1.35
		800	$ 1.15
		1200	$ 1.01
		2000	$ 0.97

Description

General part information

SSM-102 Series

2 Position Receptacle, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold

SSM-102-S-SV-P-TR

Deep-Dive with AI

SSM-102-S-SV-P-TR

Deep-Dive with AI

Technical Specifications

SSM-102 Series

Pricing

Description

SSM-102 Series

Documents

Datasheet

SSM Datasheet

Surface Mount PCB Socket Strips, .100" pitch

SSM-102 Series
