Specification	RT6338BHGQUF

Current - Output 1	8 A
Current - Output 2	100 mA
Frequency - Switching	500 kHz
Mounting Type	Surface Mount
Number of Outputs	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C

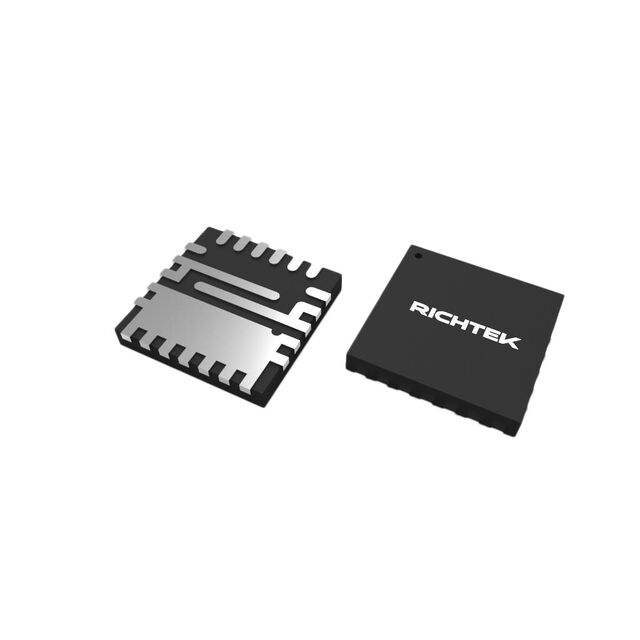

Package / Case	23-PowerUFQFN
Package Length	3 mm
Package Name	23-UQFN, 23-UQFN (FC)
Package Width	3 mm
Topology	Linear (LDO) (1), Step-Down (Buck) Synchronous (1)
Voltage - Output 1	3.3 V
Voltage - Output 2	3.3 V
Voltage - Supply (Maximum)	23 V
Voltage - Supply (Minimum)	4.5 V
Voltage/Current - Output 1 Options	Fixed
Voltage/Current - Output 2 Mode	Fixed
w/LED Driver	No
w/Sequencer	No
w/Supervisor	No

RT6338 Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Topology	w/Supervisor	Voltage/Current - Output 1 Options	Voltage - Output 1	Current - Output 1	w/Sequencer	w/LED Driver	Voltage/Current - Output 2 Mode	Current - Output 2	Voltage - Output 2	Package Name	Package Width	Package Length	Package / Case	Frequency - Switching	Number of Outputs	Mounting Type
Richtek USA Inc. RT6338CHGQUF	125 °C	-40 °C	5.2 V	23 V	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	Fixed	5.1 V	8 A	No	No	Fixed	100 mA	5 V	23-UQFN 23-UQFN (FC)	3 mm	3 mm	23-PowerUFQFN	500 kHz	2	Surface Mount
Richtek USA Inc. RT6338BHGQUF	125 °C	-40 °C	4.5 V	23 V	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	Fixed	3.3 V	8 A	No	No	Fixed	100 mA	3.3 V	23-UQFN 23-UQFN (FC)	3 mm	3 mm	23-PowerUFQFN	500 kHz	2	Surface Mount
Richtek USA Inc. RT6338CGQUF	125 °C	-40 °C	5.2 V	23 V	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	Fixed	5.1 V	8 A	No	No	Fixed	100 mA	5 V	23-UQFN 23-UQFN (FC)	3 mm	3 mm	23-PowerUFQFN	500 kHz	2	Surface Mount
