5151-3-5

Active

3M (TC)

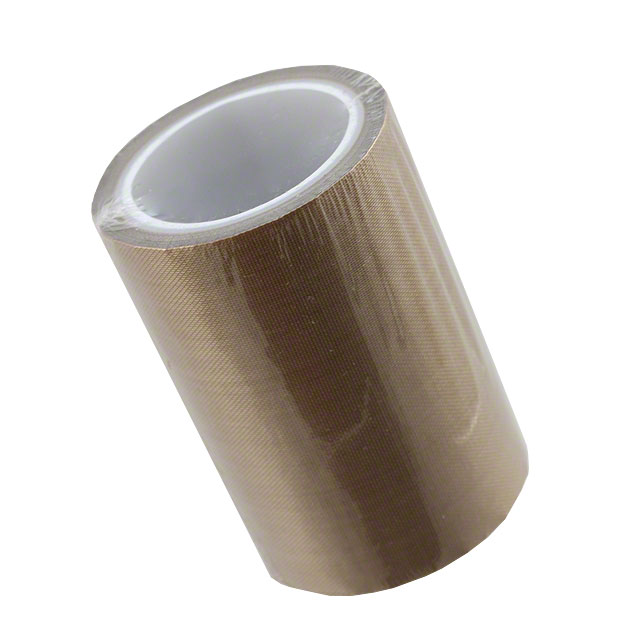

TAPE GLASS CLOTH BROWN 3"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

5151-3-5

Active

3M (TC)

TAPE GLASS CLOTH BROWN 3"X5YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5151-3-5

Adhesive	Silicone Thermosetting
Color	Brown
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Glass Cloth
Temperature Range [Max]	400 °F
Temperature Range [Max]	204 °C
Temperature Range [Min]	-100 °F
Temperature Range [Min]	-73 °C
Thickness	0.0053 "
Thickness	0.135 mm
Thickness	5.3 mils
Thickness - Adhesive	0.0023 "
Thickness - Adhesive	2.3 mils
Thickness - Adhesive	0.058 mm
Thickness - Backing, Carrier	0.003 in
Thickness - Backing, Carrier	3 mils
Thickness - Backing, Carrier	0.076 mm
Usage	General Purpose
Width [x]	76.2 mm
Width [x]	3 in

5151 Series

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life Start	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness	Thickness	Thickness	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Color	Temperature Range [Min]	Temperature Range [Max]	Tape Type	Length	Length	Length	Width	Width	Width	Temperature Range [Min]	Temperature Range [Max]	Width [x]	Width [x]	Usage	Width [y]	Width [y]	Width
3M (TC) 3M 5151 0.625" X 36YD	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	36 yd	32.9 m	108 ft	0.625 in	0.63 in	16 mm
3M (TC) 5151-9-5	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F	400 °F	Glass Cloth	5 yd	4.6 m	15 ft				-73 °C	204 °C	9 in	228.6 mm	General Purpose
3M (TC) 3M 5151 8" X 36YD	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	36 yd	32.9 m	108 ft		8 in	203.2 mm
3M (TC) 3M 5151 0.25" X 36YD	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	36 yd	32.9 m	108 ft	0.25 in	0.25 in	6.35 mm
3M (TC) 3M 5151 5" X 36YD	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	36 yd	32.9 m	108 ft									127 mm	5 in
3M (TC) 5151-3-5	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F	400 °F	Glass Cloth	5 yd	4.6 m	15 ft				-73 °C	204 °C	3 in	76.2 mm	General Purpose
3M (TC) 3M 5151 1.875" X 36YD	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	36 yd	32.9 m	108 ft		1.88 in	47.63 mm								1 7/8"
3M (TC) 7-5-5151	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F	400 °F	Glass Cloth	5 yd	4.6 m	15 ft				-73 °C	204 °C	7 in	177.8 mm	General Purpose
3M (TC) 5151-0.563-36	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	36 yd	32.9 m	108 ft	0.5625 "	0.56 "	14.3 mm
3M (TC) 1.5-5-5151	16 °C 60 °F	27 °C 80 °F	Date of Manufacture	24 Months	0.003 in	3 mils	0.076 mm	0.0053 "	0.135 mm	5.3 mils	Silicone Thermosetting	0.0023 "	2.3 mils	0.058 mm	Brown	-100 °F -73 °C	260 °C	Glass Cloth	5 yd	4.6 m	15 ft		1.5 "	38.1 mm								1 1/2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 123.78

Description

General part information

5151 Series

Glass Cloth Tape Silicone Thermosetting Adhesive Brown 3.00" (76.20mm) X 15' (4.6m) 5 yds

Documents

Technical documentation and resources

No documents available
