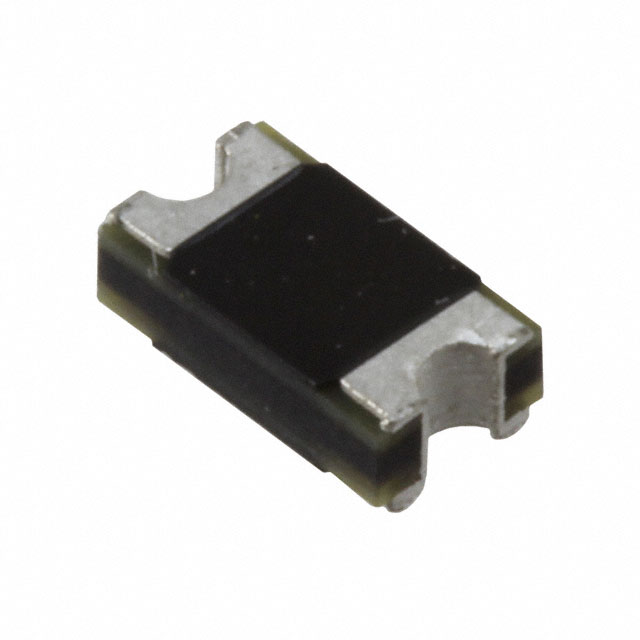

CD1408-F1800

Active

Bourns Inc.

DIODE STANDARD 800V 1A 1408

Search across all available documentation for this part.

Active

Bourns Inc.

DIODE STANDARD 800V 1A 1408

Technical Specifications

Parameters and characteristics for this part

Specification	CD1408-F1800

Capacitance @ Vr, F	15 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Concave Terminals, Chip
Reverse Recovery Time (trr)	300 ns
Speed	200 mA, 500 ns
Supplier Device Package	1408
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	800 V
Voltage - Forward (Vf) (Max) @ If	1.3 V

Part	Supplier Device Package	Reverse Recovery Time (trr)	Technology	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Package / Case	Speed	Current - Average Rectified (Io)	Capacitance @ Vr, F	Speed
Bourns Inc. CD1408-FF11500	1408	50 ns	Standard	Surface Mount	175 ░C	-65 C	1500 V	6 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A
Bourns Inc. CD1408-F1400	1408	300 ns	Standard	Surface Mount	175 ░C	-65 C	400 V	1.3 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	15 pF
Bourns Inc. CD1408-F1800	1408	300 ns	Standard	Surface Mount	175 ░C	-65 C	800 V	1.3 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	15 pF
Bourns Inc. CD1408-FU1600	1408	35 ns	Standard	Surface Mount	175 ░C	-65 C	600 V	1.25 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	10 pF
Bourns Inc. CD1408-FF11000	1408	75 ns	Standard	Surface Mount	175 ░C	-65 C	1000 V	1.7 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	10 pF
Bourns Inc. CD1408-R1400	1408	3 çs	Standard	Surface Mount	175 ░C	-65 C	400 V	1 V	1 µA	Chip Concave Terminals	200 mA	1 A		Standard Recovery >500ns
Bourns Inc. CD1408-F1600	1408	300 ns	Standard	Surface Mount	175 ░C	-65 C	600 V	1.3 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	15 pF
Bourns Inc. CD1408-FU1400	1408	35 ns	Standard	Surface Mount	175 ░C	-65 C	400 V	1.05 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	10 pF
Bourns Inc. CD1408-F11000	1408	300 ns	Standard	Surface Mount	175 ░C	-65 C	1000 V	1.3 V	5 µA	Chip Concave Terminals	200 mA 500 ns	1 A	15 pF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 800 V 1A Surface Mount 1408
