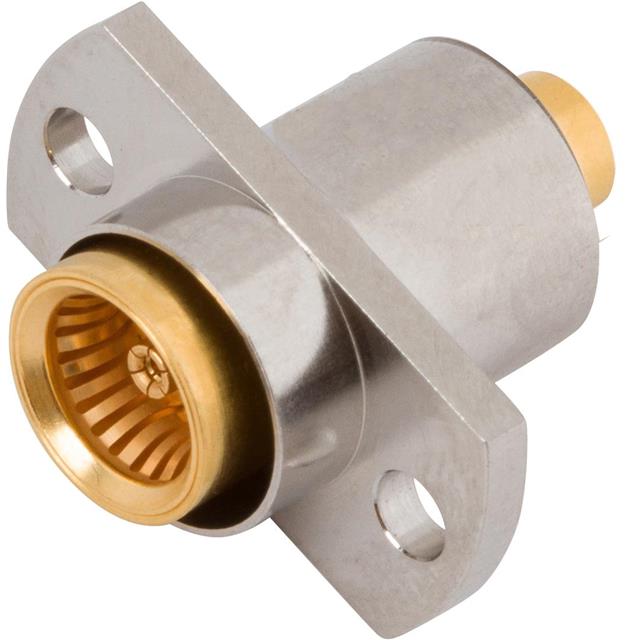

Specification	SF1732-6004

Body Material	Stainless Steel
Cable Group	RG-402
Cable Group Diameter (Default)	0.141 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	22 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	5000 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Shield Termination	Solder

SF1732 Series

Part	Body Material	Dielectric Material	Mating Cycles	Center Contact Plating	Fastening Type	Mounting Type	Number of Ports	Connector Style	Frequency - Max	Contact Termination	Impedance	Mounting Feature	Shield Termination	Connector Type	Housing Color	Cable Group	Cable Group Diameter (Default)	Center Contact Material
McGill Microwave Systems SF1732-6004	Stainless Steel	Polytetrafluoroethylene (PTFE)	5000 cycles	Gold	Snap-On	Panel Mount	1	BMA	22 GHz	Solder	50 Ohm	Flange	Solder	Female Socket Jack	Silver	RG-402	0.141 in	Beryllium Copper
